Application

Compatible for Peugeot Boxer 230/244/250 1994-
Compatible for Fiat Ducato Z6 ZFA230 / ZFA244 / ZFA250 1994-
Compatible for Citroen Jumper 230/244/250 1994-
Note: Does not fit vehicles with the national Italian ABE "DGM 54739 OM"

Specification

Condition: Brand New
Placement on Vehicle: Rear left and right
Max loading：5000 KG

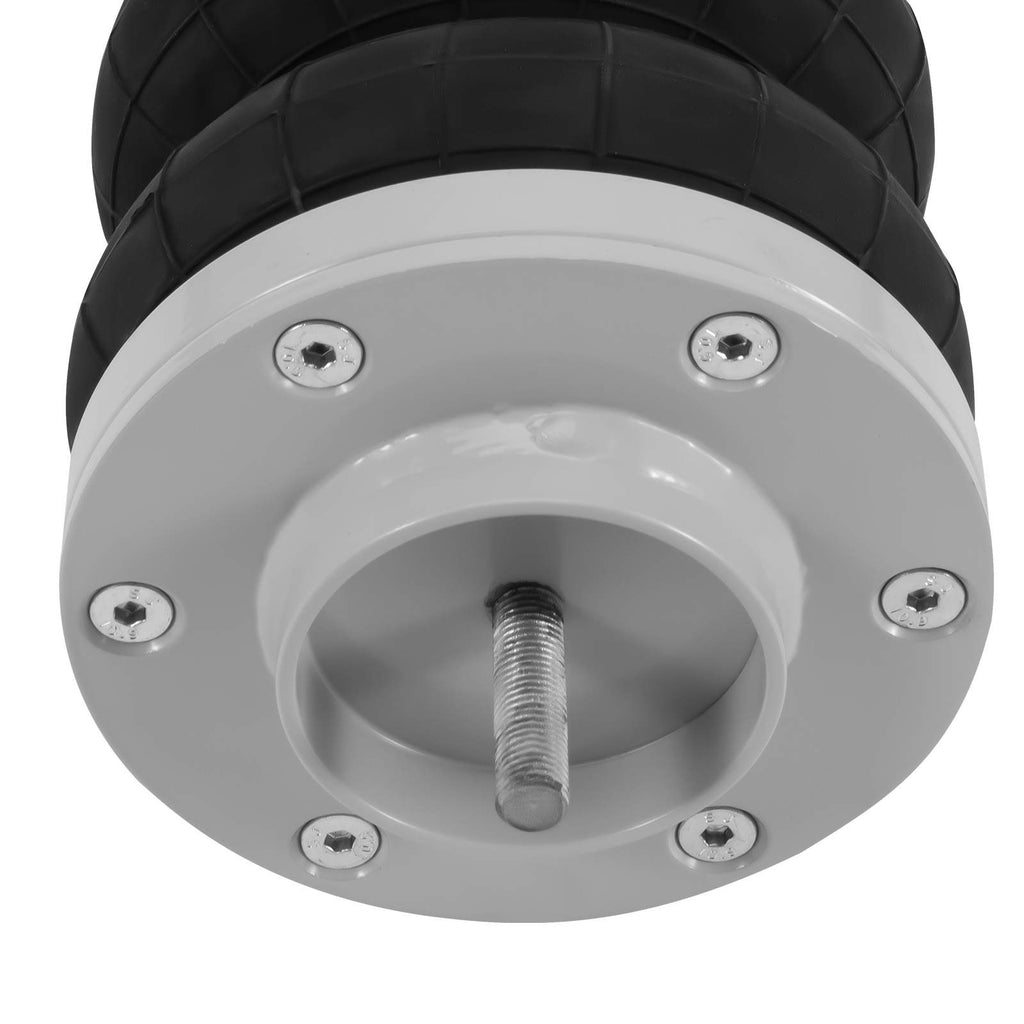

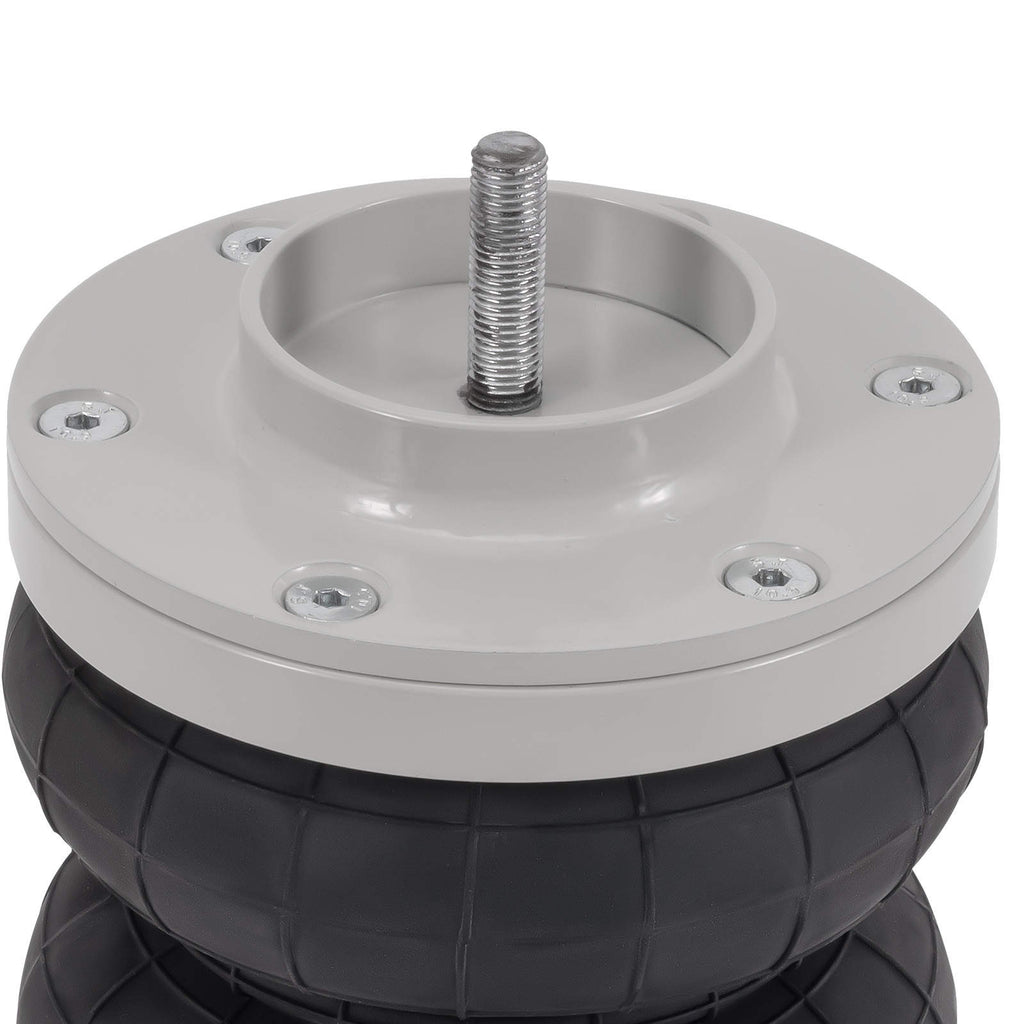

Air spring---
Single air port size: G1/8
Stroke: 130 mm
Max. Extended: 260 mm
Min. Compressed: 130 mm
Operating Pressure : ≤2.0 MPA
Temperature range：≤+70°, ≥-40°
Air pump---
Power: 150W
Output Voltage: 12V
Maximum Working Voltage: 10bar（1MPa ）

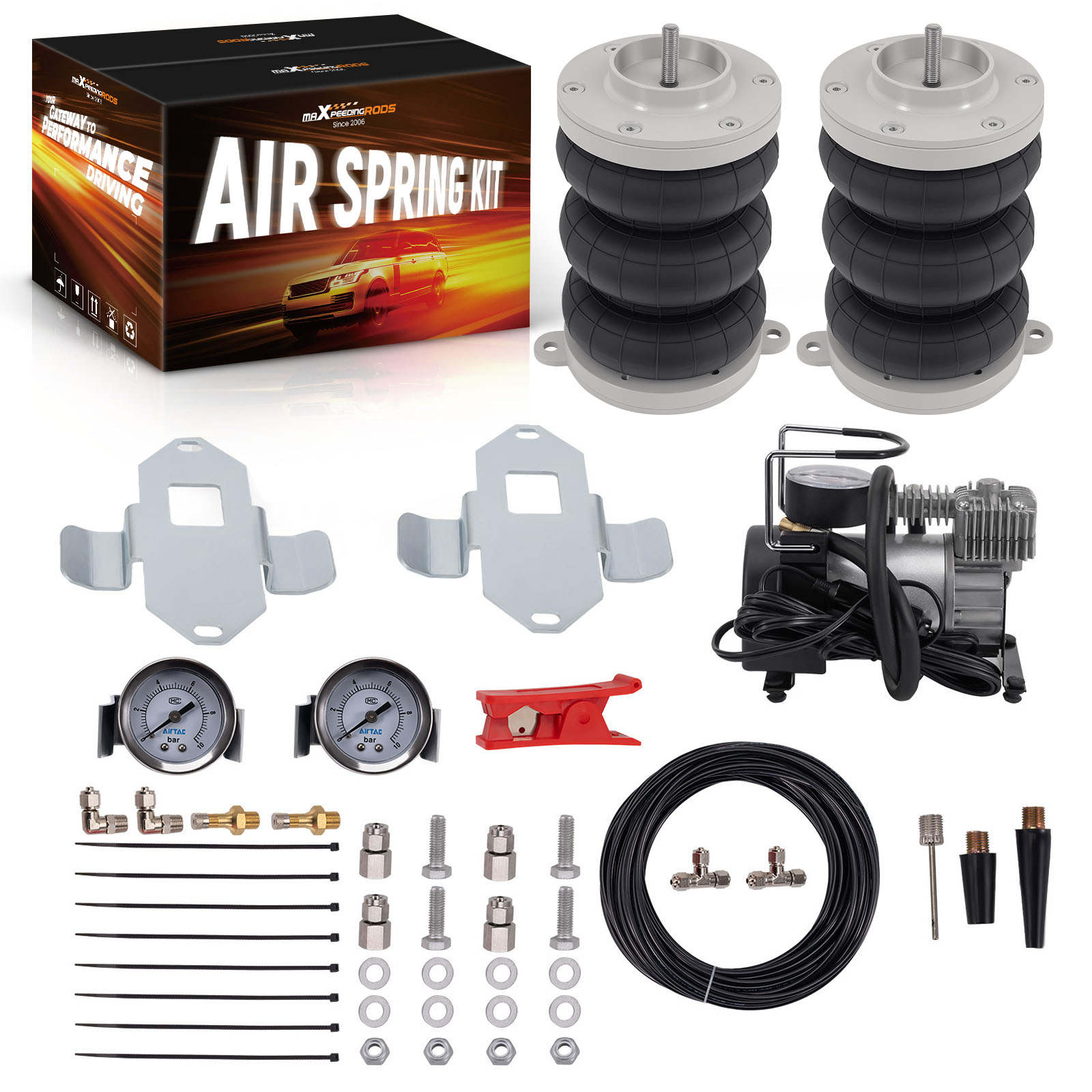

The package includes (as the picture shows):
2x Air spring
1x Air suspension compressor
2x Gauge
2x Mounting bracket
1x Air line
Mounting bolts and Air fittings

Feature

1、Stress Test Over 5,000,000 Times：Durable and Safe
2、Burst Pressure≥2.0MPa：High Compressive Strength and Less Noise
3、100% Air Tightness Guarantee
4、Temperature Range ≥ -40℃/ ≤ 70℃ (≥ -40°F/≤ 158°F)：Premium Natural Rubber Material
5. 4-Layer reinforcement construction: Enhances air spring load support.
6、Use high-quality steel with high load-bearing capacity and long life.
7、Excellent and practical bolt-on installation.
8、Safe carrying capacity and stability
9、Restore the original ride height and improve ride quality
10、Ensure our driving comfort and reduce tire wear.
11、Dacromet is a new surface treatment technology that has excellent corrosion resistance compared to traditional electroplating processes.
