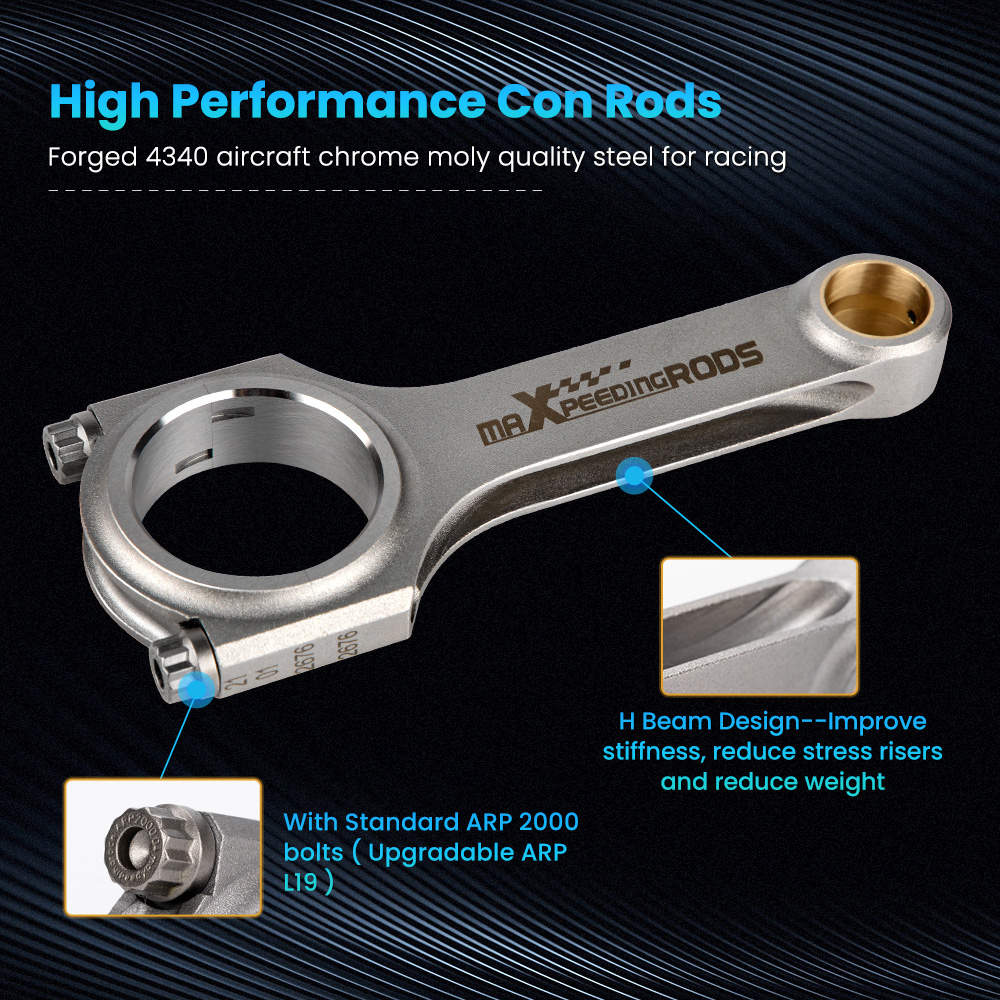

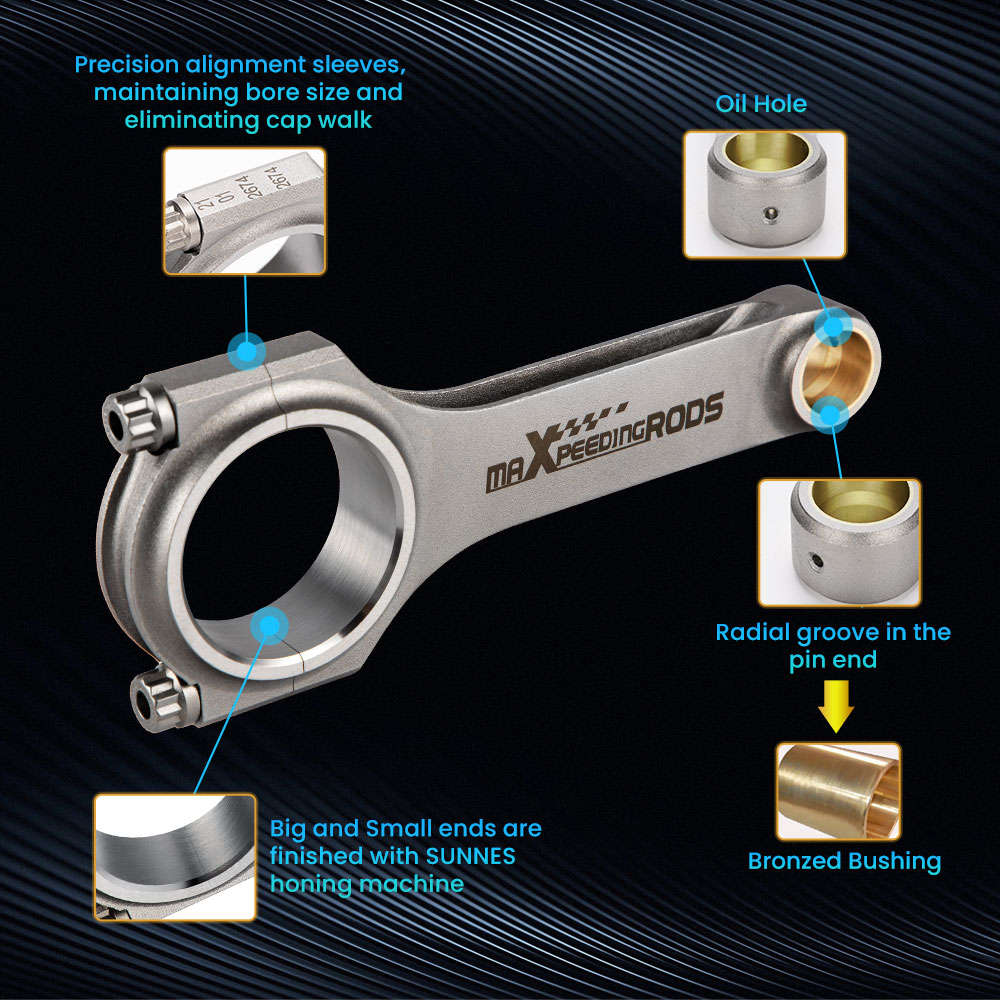

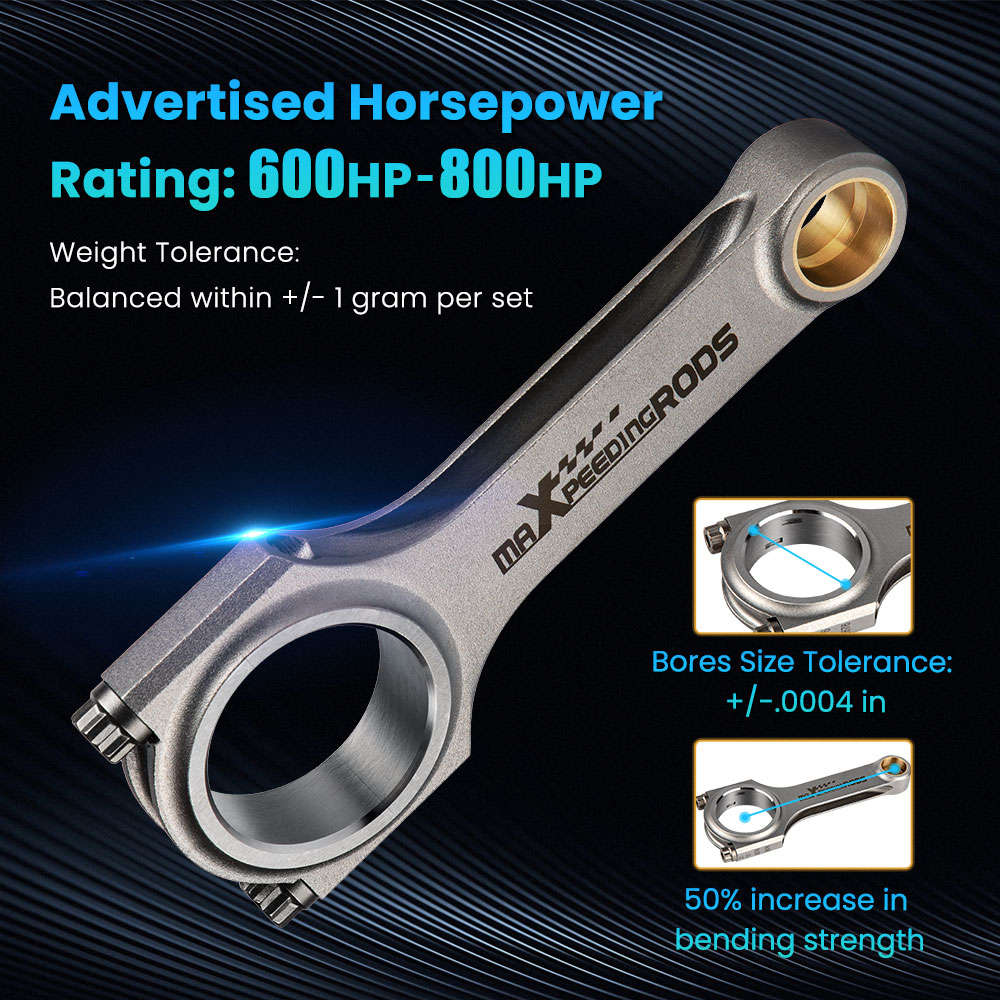

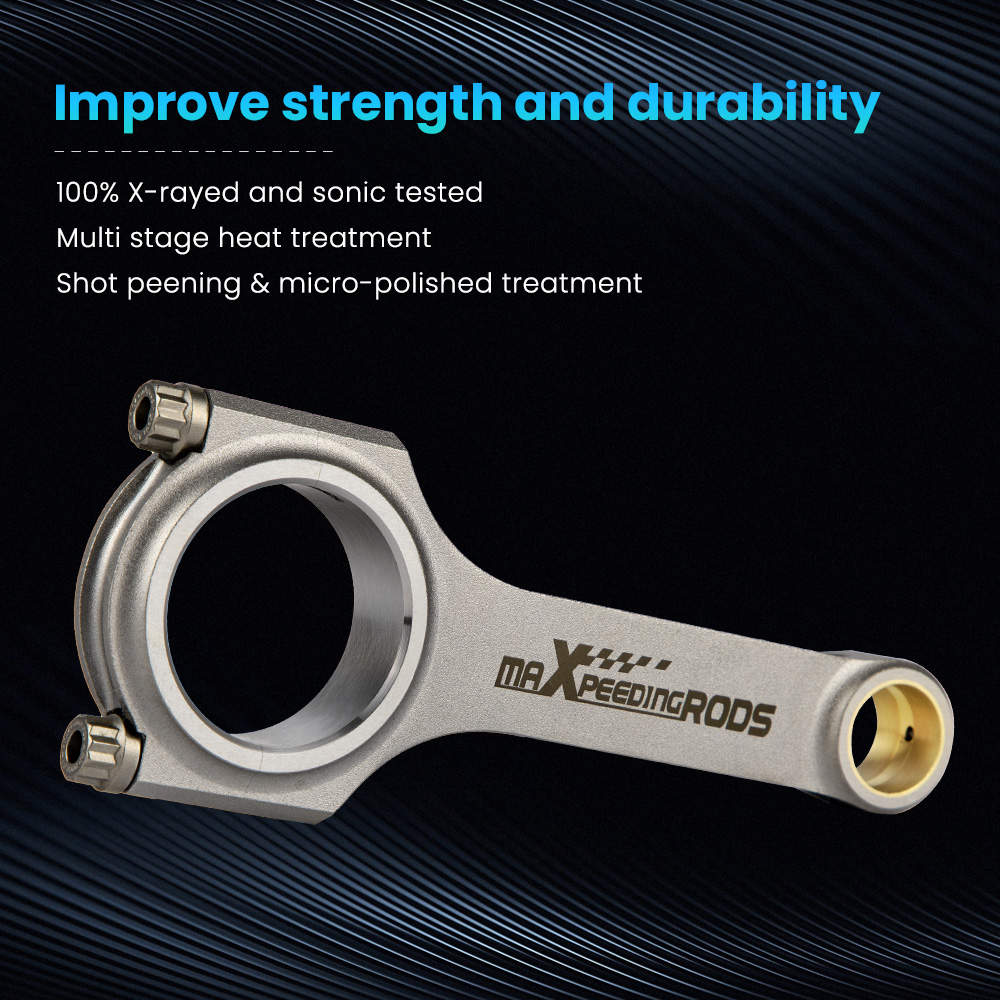

Forged H-Beam Engine H-Beam Connecting Rod+ARP2000 Bolts compatible for Fiat 500 5.118 New
Forged H-Beam Engine H-Beam Connecting Rod+ARP2000 Bolts compatible for Fiat 500 5.118 New
- ✓ Hinta sisältää arvonlisäveron — ei lisämaksuja perillä
- ✓ Nopea toimitus omasta varastostamme
- ✓ 100 % uusi, jälkimarkkinaosa OE-laatua
- ✓ 2 vuoden takuu valmistusvirheille
Application
Compatible for Fiat 500 Classic Old Model 2-Cylinder Engine (130mm Bore Size)
Specification
Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Dimension
Connecting Rod Length Center to Center: 130.00mm/5.118in
Approximate Connecting Rod Weight: 421g
Big End Bore Diameter: 47.13mm/1.856in
Pin End Bore Diameter: 20.00mm/0.787in
Big End Width: 24.70mm/0.972in
Small End Width: 18.50mm/0.728in
Performance Ratings
Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 7,000rpm
Packaging
Quantity: Sold as a set of 2
Package Size: 23CM*9.5CM*7CM
