Connecting Rods (with ARP bolts) Compatible for Fiat 2.0 Coupe 5-Cylinder 20V Turbo
Connecting Rods (with ARP bolts) Compatible for Fiat 2.0 Coupe 5-Cylinder 20V Turbo
- ✓ Hinta sisältää arvonlisäveron — ei lisämaksuja perillä
- ✓ Nopea toimitus omasta varastostamme
- ✓ 100 % uusi, jälkimarkkinaosa OE-laatua
- ✓ 2 vuoden takuu valmistusvirheille
Application
Compatible for Fiat 2.0L 20V Turbo L5 (175A3.000)
Compatible for Fiat Coupe FA/175 1996-2000 Coupe (2.0 20V Turbo)
Compatible for Fiat Coupe FA/175 1998-2000 Coupe (2.0 20V Turbo Plus)

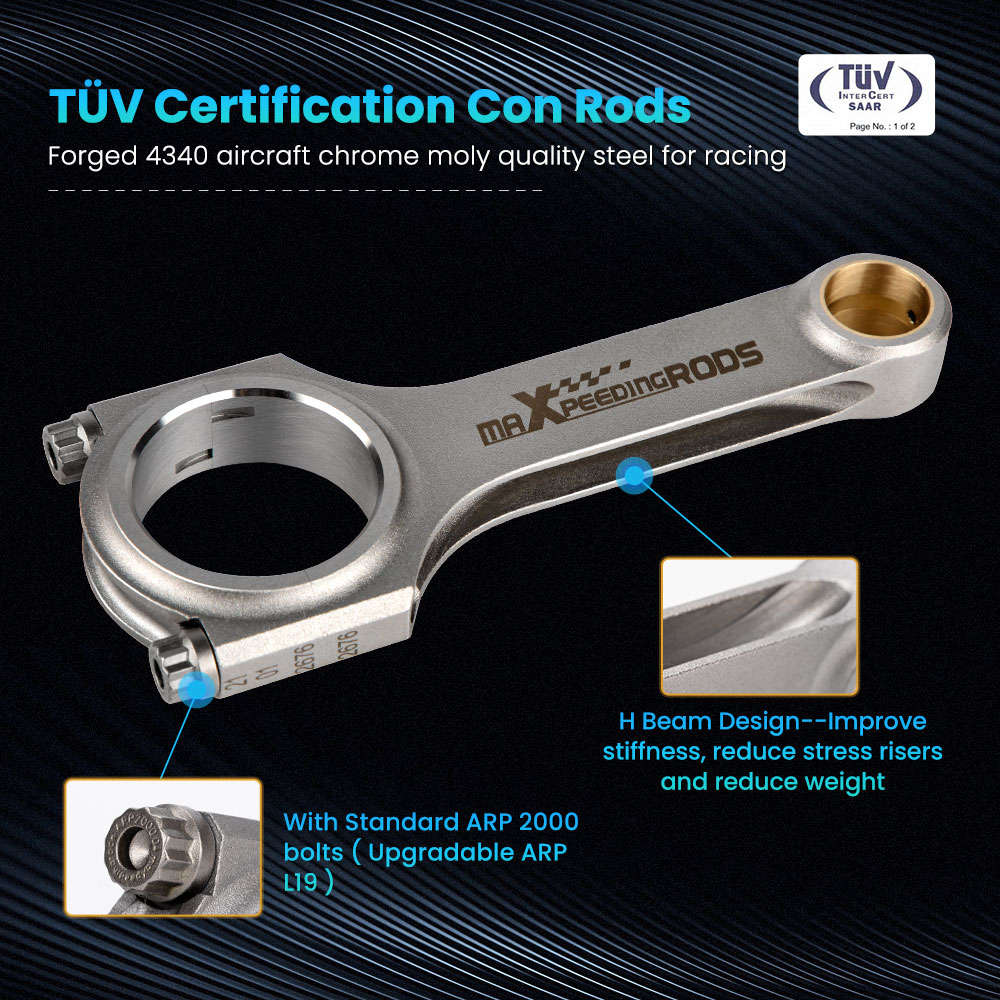

Specification
Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
ClearancedFor Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision
Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes

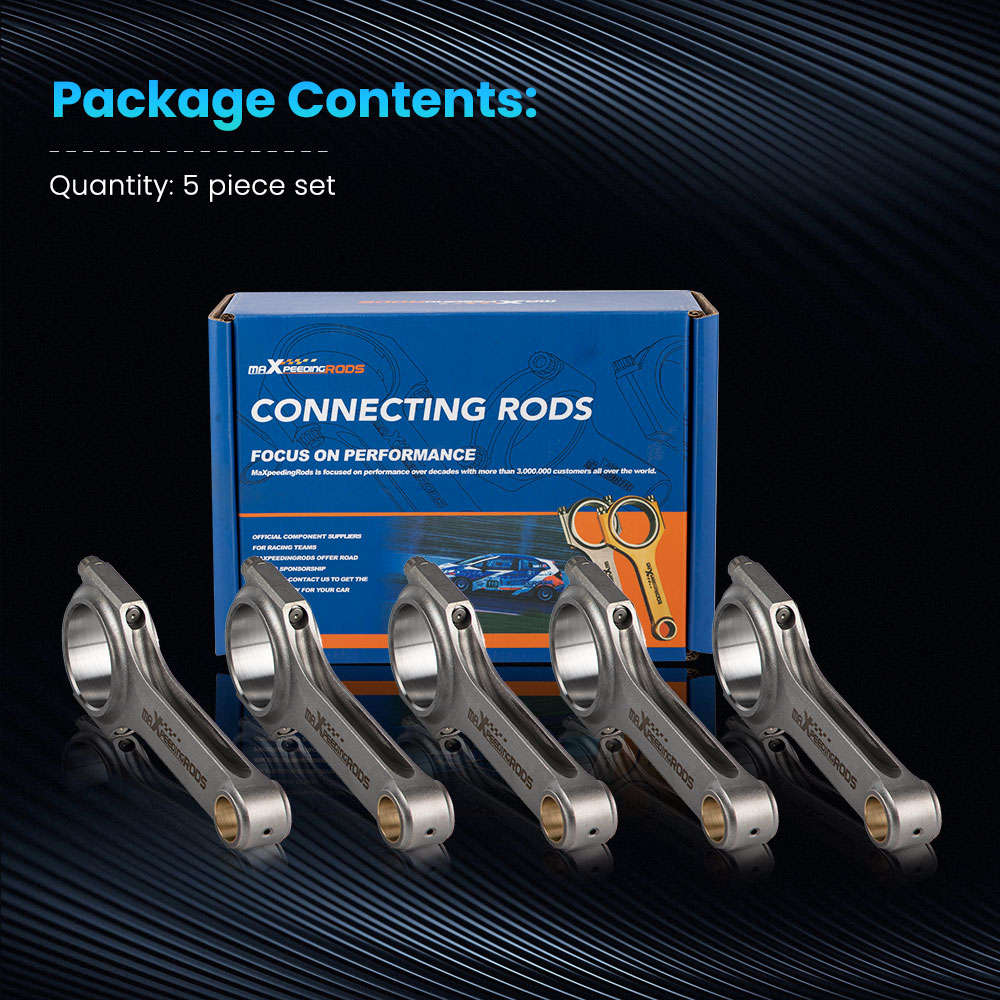

Package included
Quantity: Sold as a set of 5
Package Size: 28CM*20CM*14CM
Dimension
Connecting Rod Length Center to Center: 145.00mm / 5.709in
Approximate Connecting Rod Weight:487g
Big End Bore Diameter: 51.30mm / 2.020in
Pin End Bore Diameter: 22.00mm / 0.866in
Big End Width: 22.00mm / 0.866in
Small End Width: 22.00mm / 0.866in

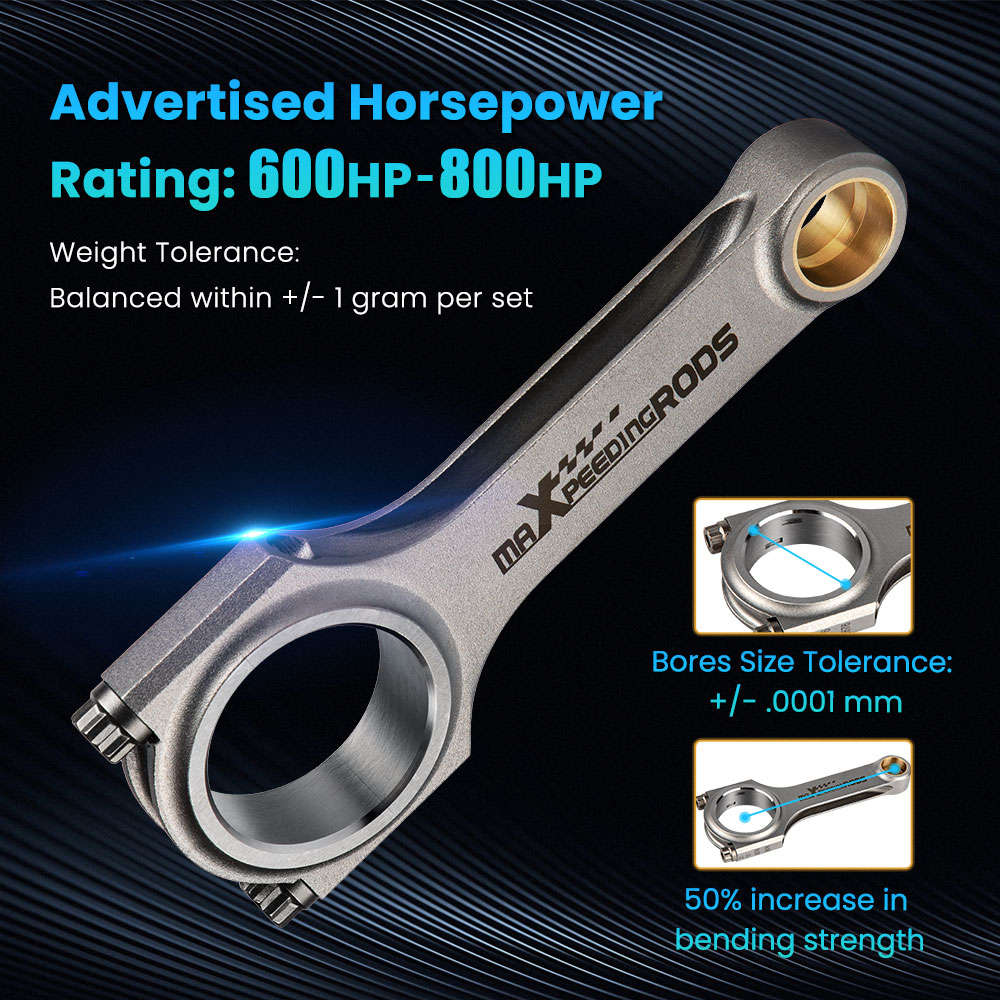

Performance Ratings
Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9000rpm
