Connecting Rods compatible for VW - Golf 1999-2005 (MK4) 2.8L 12V VR62.8L 24V VR6 engine
Connecting Rods compatible for VW - Golf 1999-2005 (MK4) 2.8L 12V VR62.8L 24V VR6 engine
- ✓ Hinta sisältää arvonlisäveron — ei lisämaksuja perillä
- ✓ Nopea toimitus omasta varastostamme
- ✓ 100 % uusi, jälkimarkkinaosa OE-laatua
- ✓ 2 vuoden takuu valmistusvirheille
Application
Compatible for VW / Audi VR6 2.8L / 2.9L 12V / 2.8L / 3.2L 24V – Compatible for Golf MK3 / MK4 / Corrado / Passat / Sharan / Transporter T4 / Compatible for Audi TT 8N 3.2
Specification

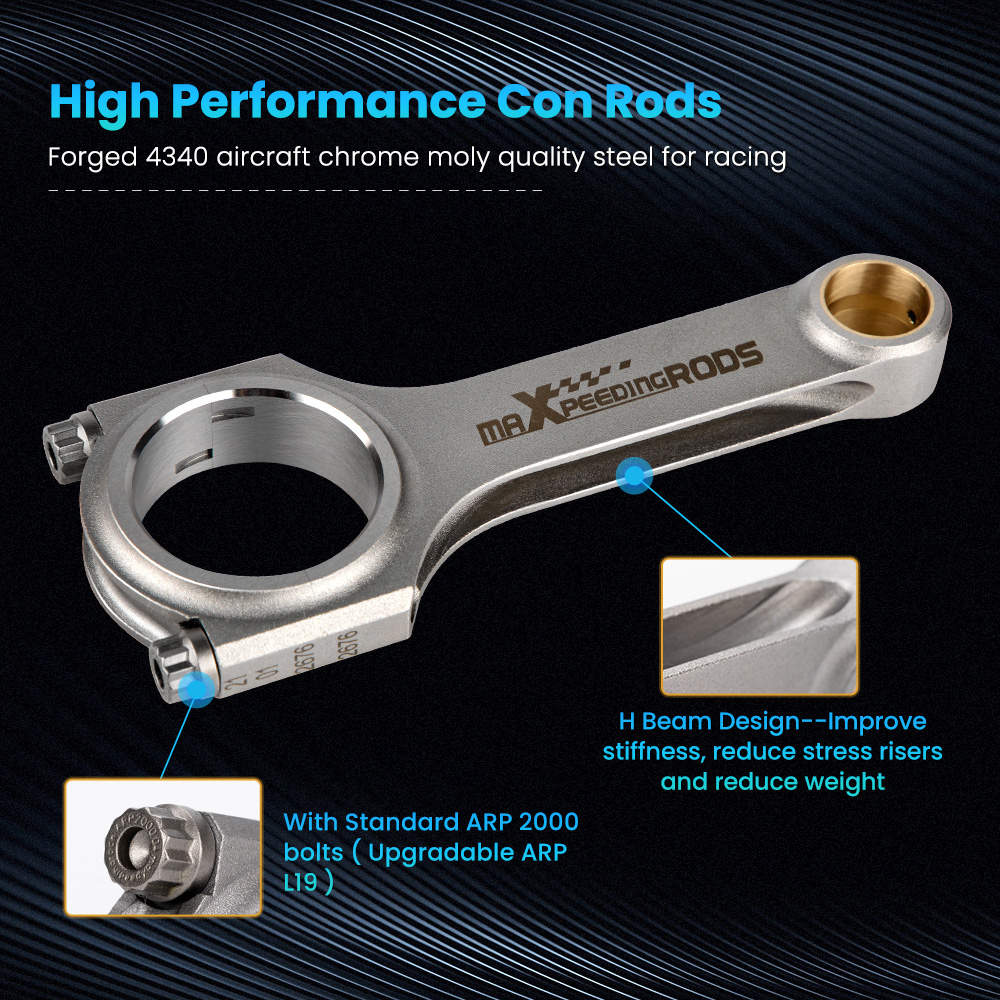

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 5/16"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

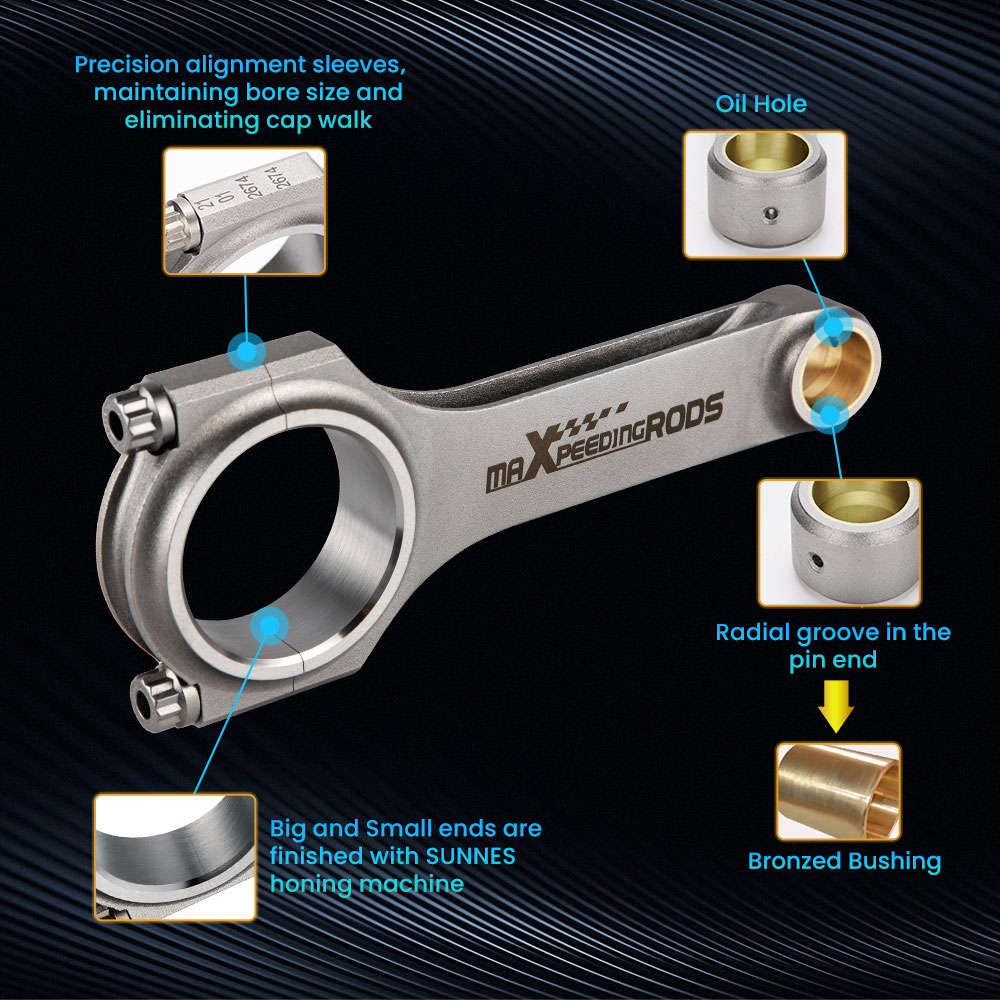

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No

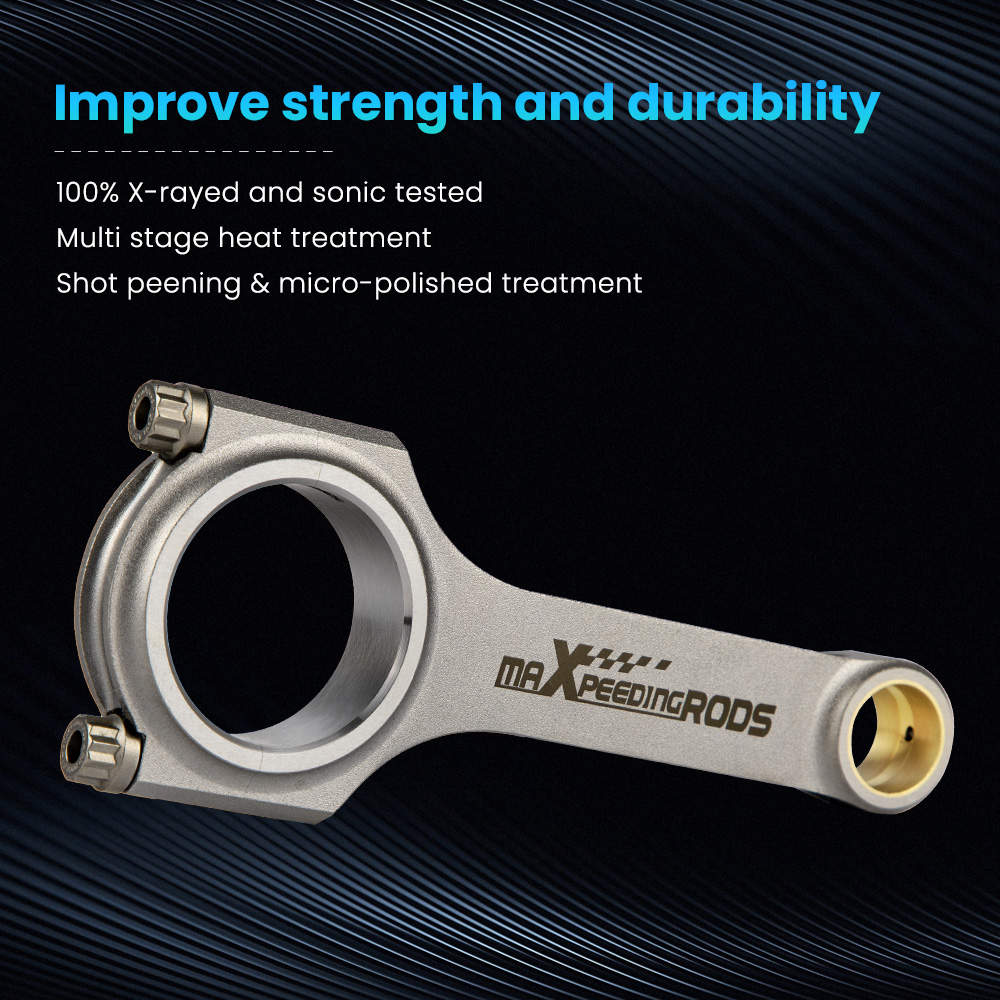

Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Dimension
Connecting Rod Length Center to Center: 164.00mm/6.457in
Approximate Connecting Rod Weight: 594g
Big End Bore Diameter: 56.80mm/2.236in
Pin End Bore Diameter: 20.00mm/0.787in
Big End Width: 19.90mm/0.783in
Small End Width: 19.90mm/0.783in
Performance Ratings
Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 7,000rpm
Packaging
Quantity: Sold as a set of 6
Package Size: 28CM*20CM*14CM
