Application

Compatible for Ford XFlow compatible for Lotus twincam BDA Cosworth BDG 5.23 Narrow Journal

Specification

- Performance Con Rods

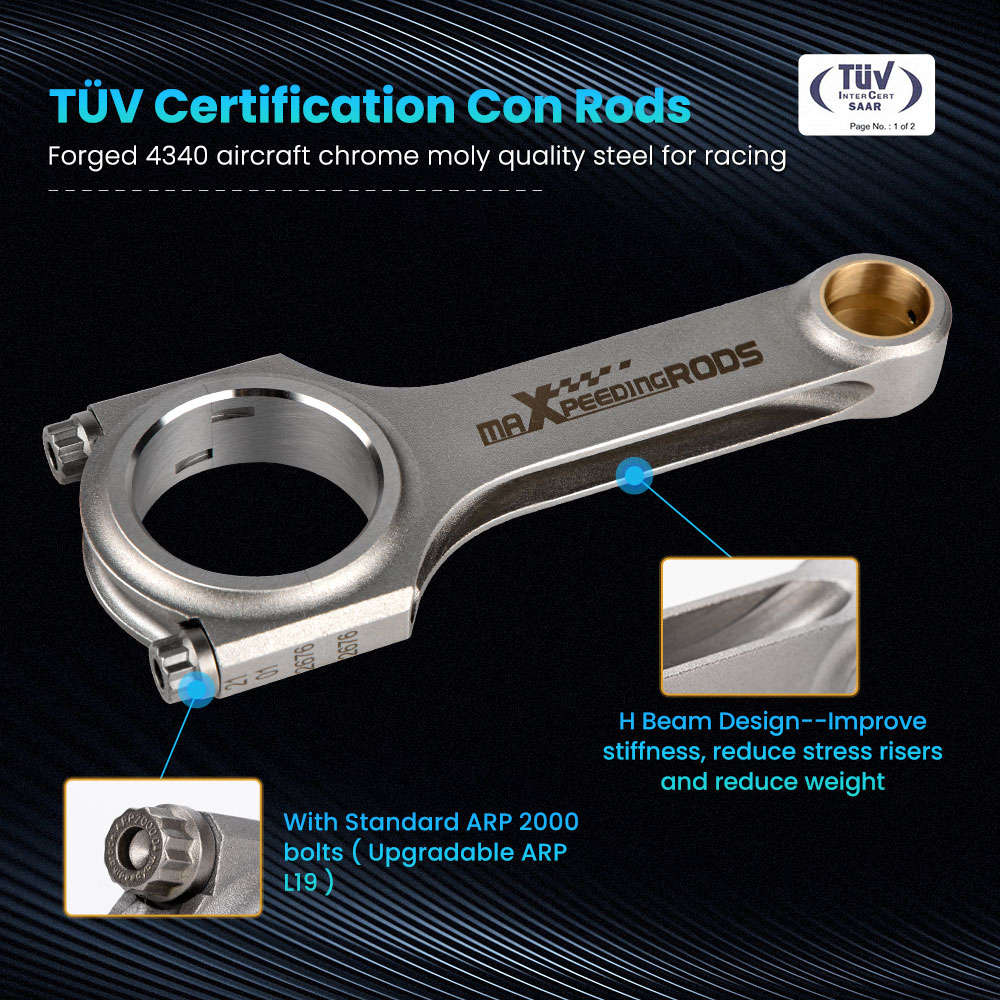

- Type: Forged 4340 aircraft chrome moly quality steel

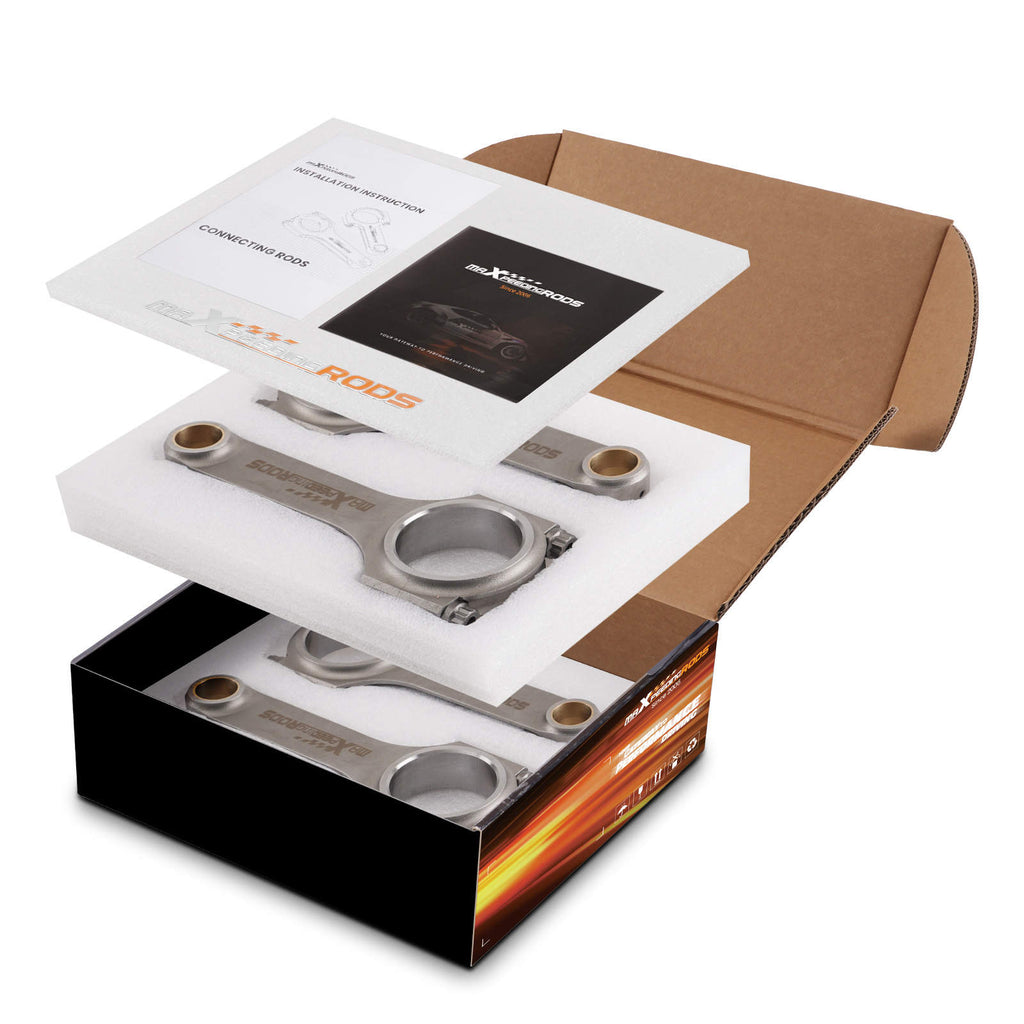

- H-beam Conrods Quantity: 4 Pieces as showing in picture
- Bolts: Including ARP 2000 bolts
- Note: Extra cost for upgrading to ARP L19 bolts
- Bolts Size: ARP 2000 3/8" bolts
- Tolerance: Balanced to +/- 1 gram in set
- Piston Bolt Hole: +-4/1000mm

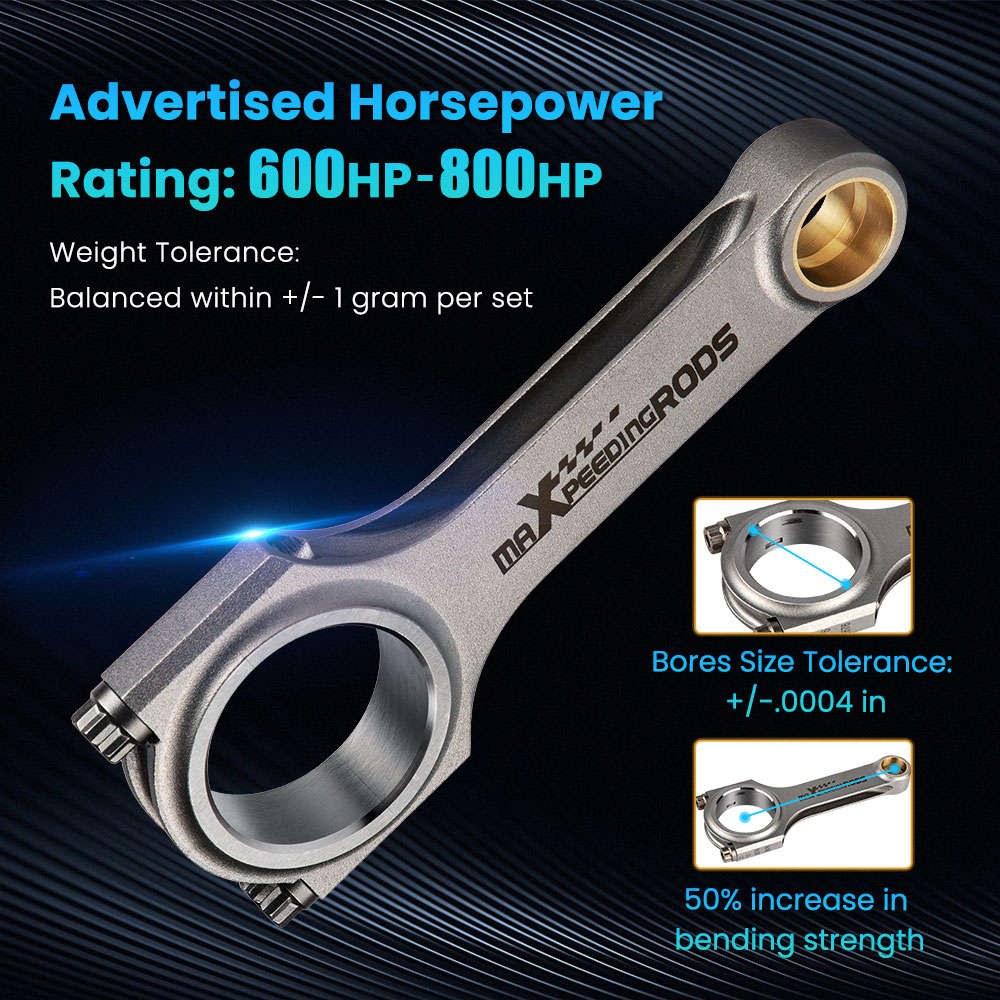

- Power: 600hp ~ 800PS per set
- Strength of the fastening (PSI): 220,000/230,000 PSI Torque: 48ft ≈ 65 NM
- Top acceleration: 9000rpm
- Warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 132.84mm
Big end diameter: 52.91mm
Small end diameter: 20.62mm
Big end width: 23.67mm
Small end width: 24.13mm

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.

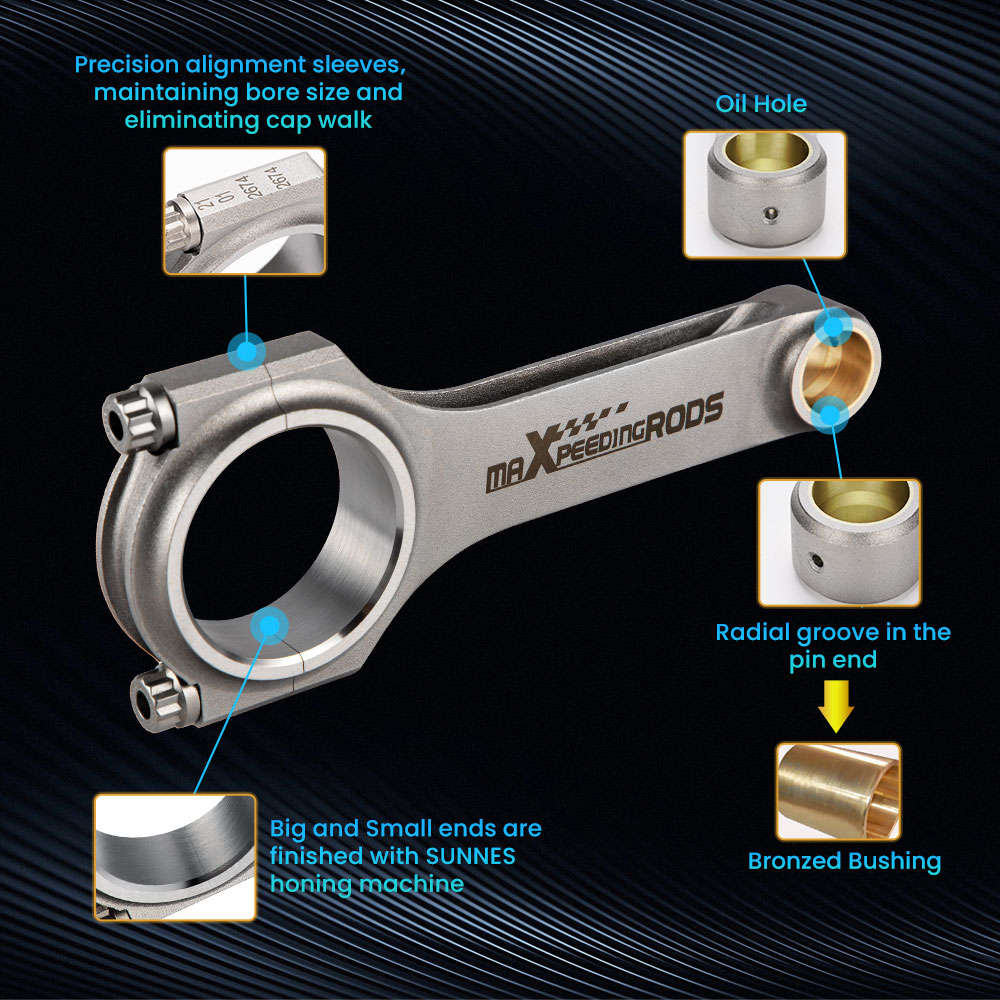

- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

- Professional installation is highly recommended (No Instruction Included)
- Custom Service: If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
- Learn more about CUSTOM SERVICE
