Application

Compatible for Audi A4 RS4 V6 Quattro
Compatible for the compatible for Audi RS4 B5 AZR/ASJ
Note: Please confirm the dimensions before purchase the connecting Rods
Note the Big end diameter:56.8mm/2.236in

Specification

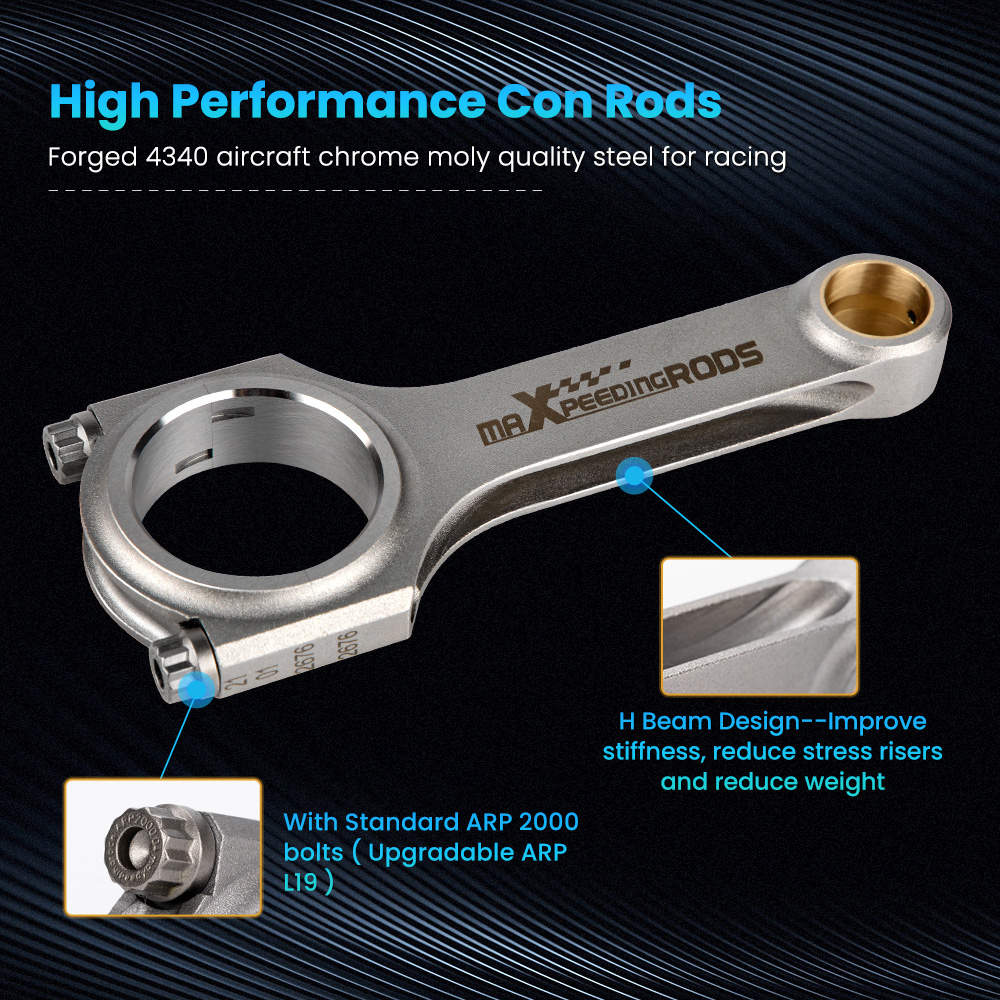

*Type: Forged 4340 aircraft chrome moly quality steel for racing
*H-beam Conrods Quantity: 6 Pieces as showing in picture
*Bolts: Including ARP 2000 5/16" bolts  (Note: Extra cost for upgrading to ARP L19 bolts)
*The connecting rods all include ARP 2000 bolts, which are rated at 220,000 psi, and the optional ARP L19 material at 260,000 psi is available as an upgraded product.

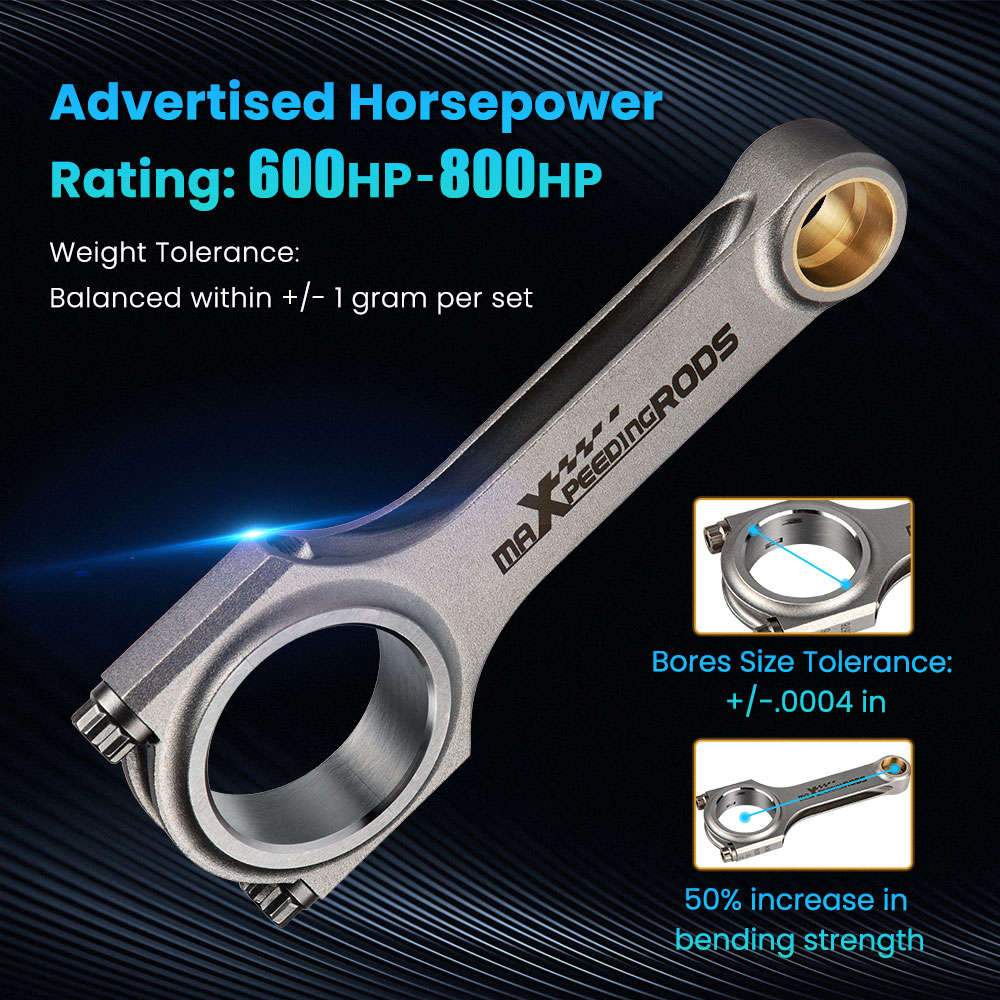

*Advertised Horsepower Rating:200HP/piece
*Top acceleration: 9000rpm
*package size：28CM*21CM*14CM
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length: 154mm/6.063in
Big end diameter:56.8mm/2.236in
Small end diameter:21mm/0.827in
Big end width:20.1mm/0.791in
Small end width: 21.9mm/0.862in

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.
- All big and small ends are finished with SUNNEN honing machine

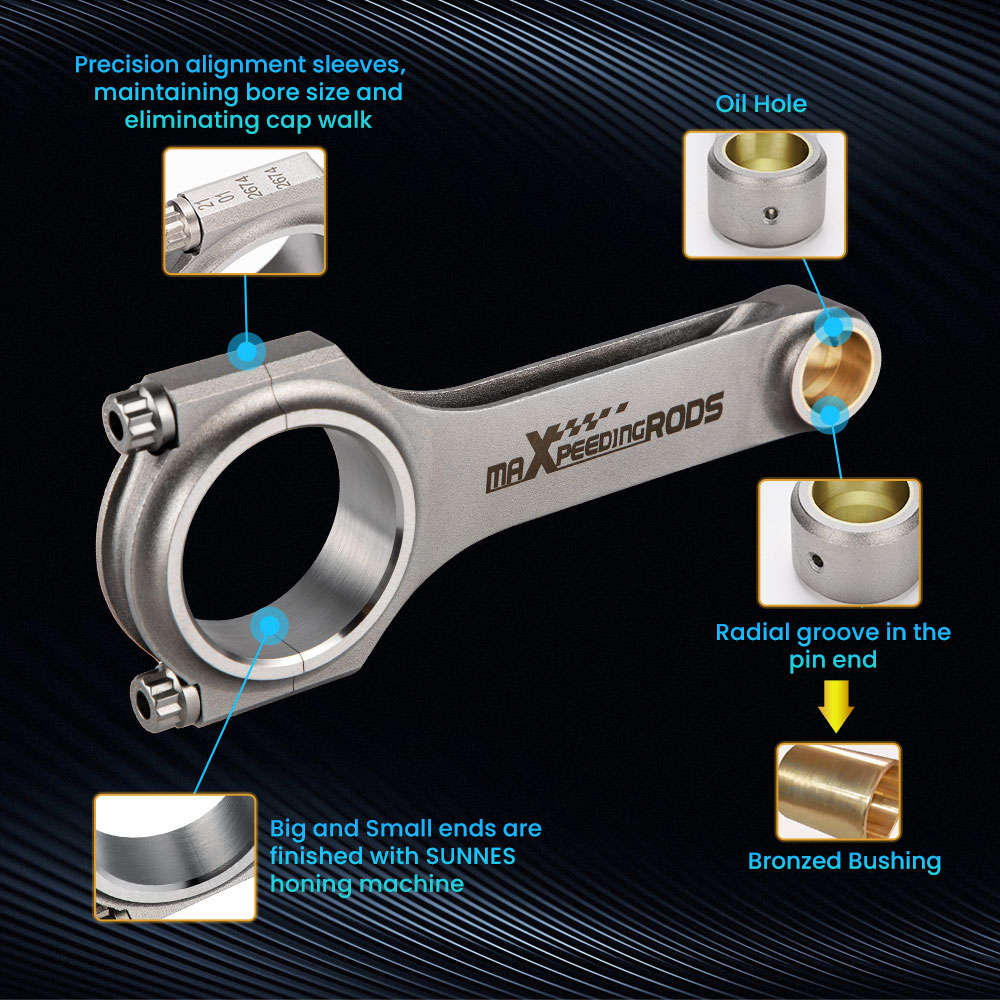

- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk

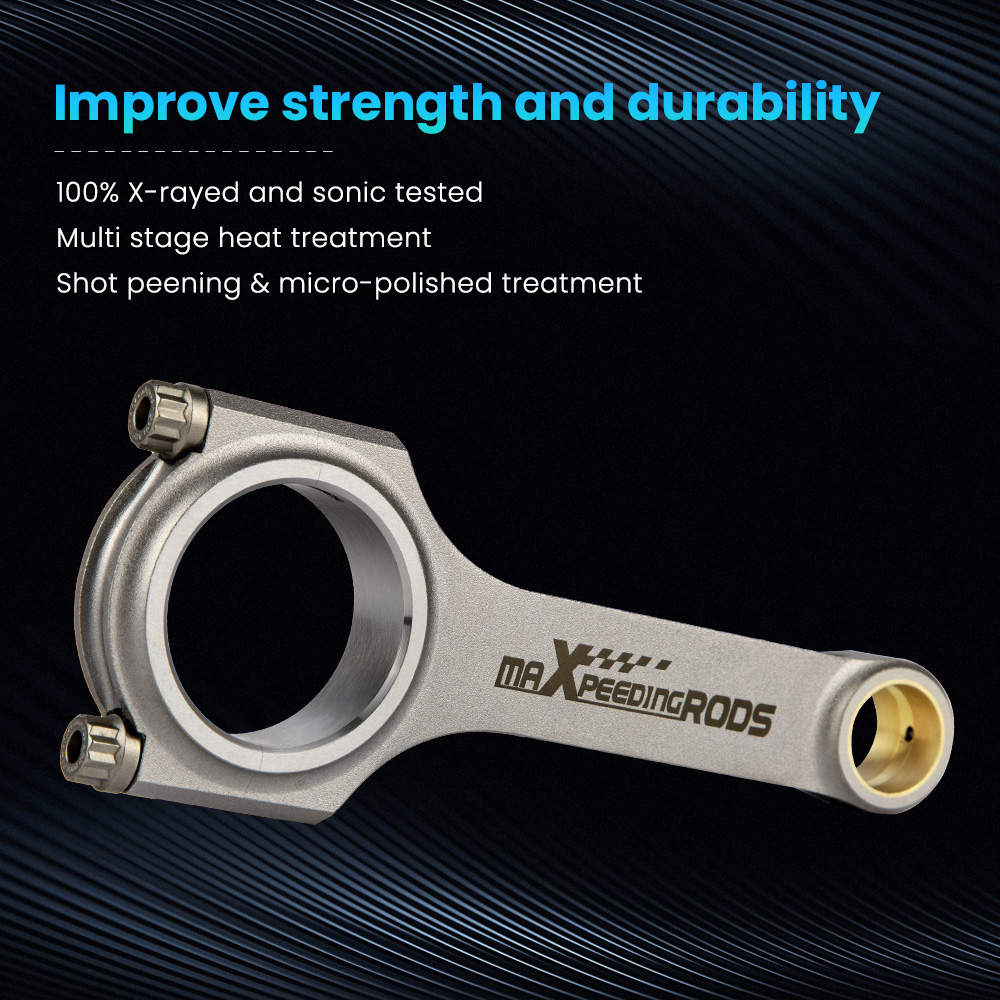

- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
Custom Service:If there's no conrods you need on our site, we would be happy to help determine your requirements and develop a solution with you to satisfy your needs.
