Application

Compatible for Ford Duratec, compatible for Mazda MZR 2.3

Specification

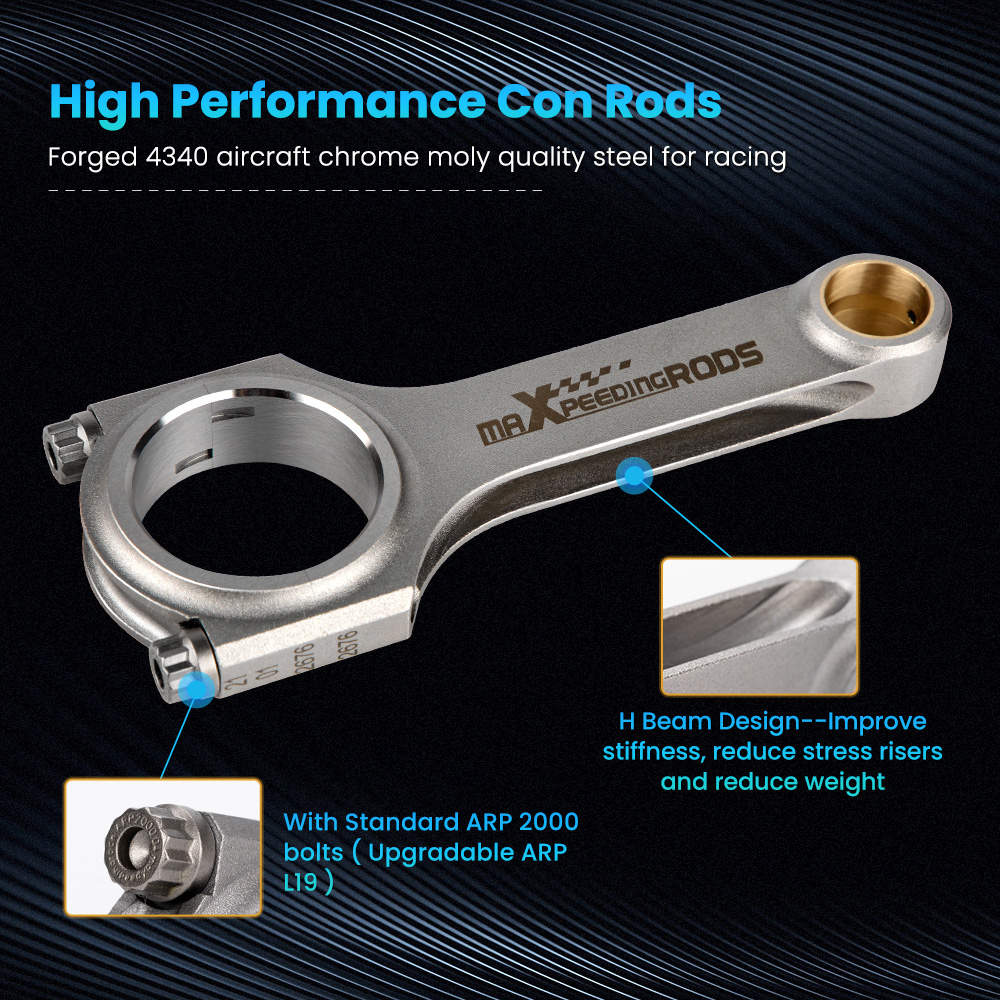

Performance Con Rods
Type: Forged 4340 aircraft chrome moly quality steel for racing
H-beam Conrods Quantity: 4 Pieces a set
Bolts: Including Genuine ARP 2000 bolts
Note: Extra cost for upgrading to ARP L19 bolts
Bolts Size: 3/8"

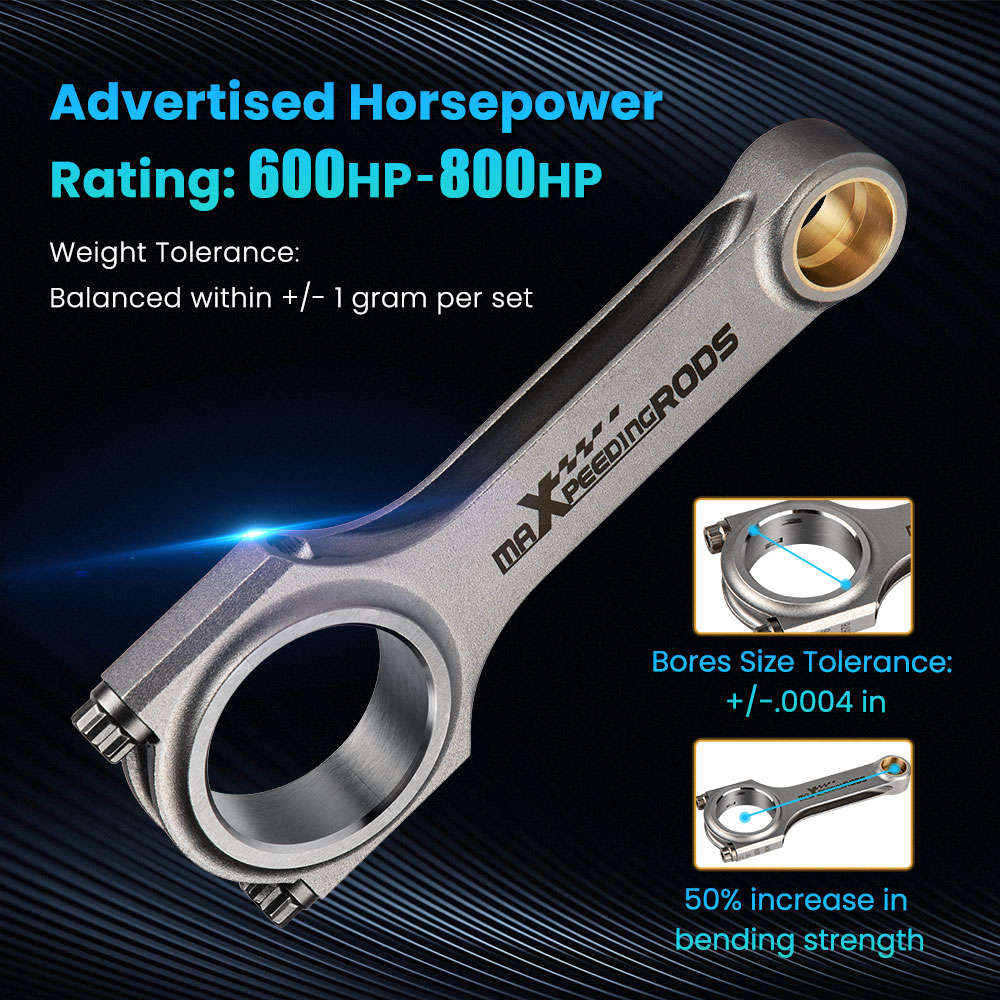

Tolerance: Balanced to +/- 1 gram in set
Piston Bolt Hole: +-4/1000mm
Power: 600hp ~ 800PS per set
Strength of the fastening (PSI): 200,000/230,000 PSI Torque: 48ft ≈ 65 NM
Top acceleration: 9000rpm
warranty: one year warranty for any manufacturing defect

Dimensions

Center to center length:154.8mm/6.094"
Big end diameter:53mm/2.087"
Small end diameter:21mm/0.827"
Big end width:21.8mm/0.858"
Small end width:18mm/0.709"

Feature

- Forged SAE 4340 Chrome Moly Steel for the highest strength and durability, dedicated for Racing
- Designed and processed by CNC machine.

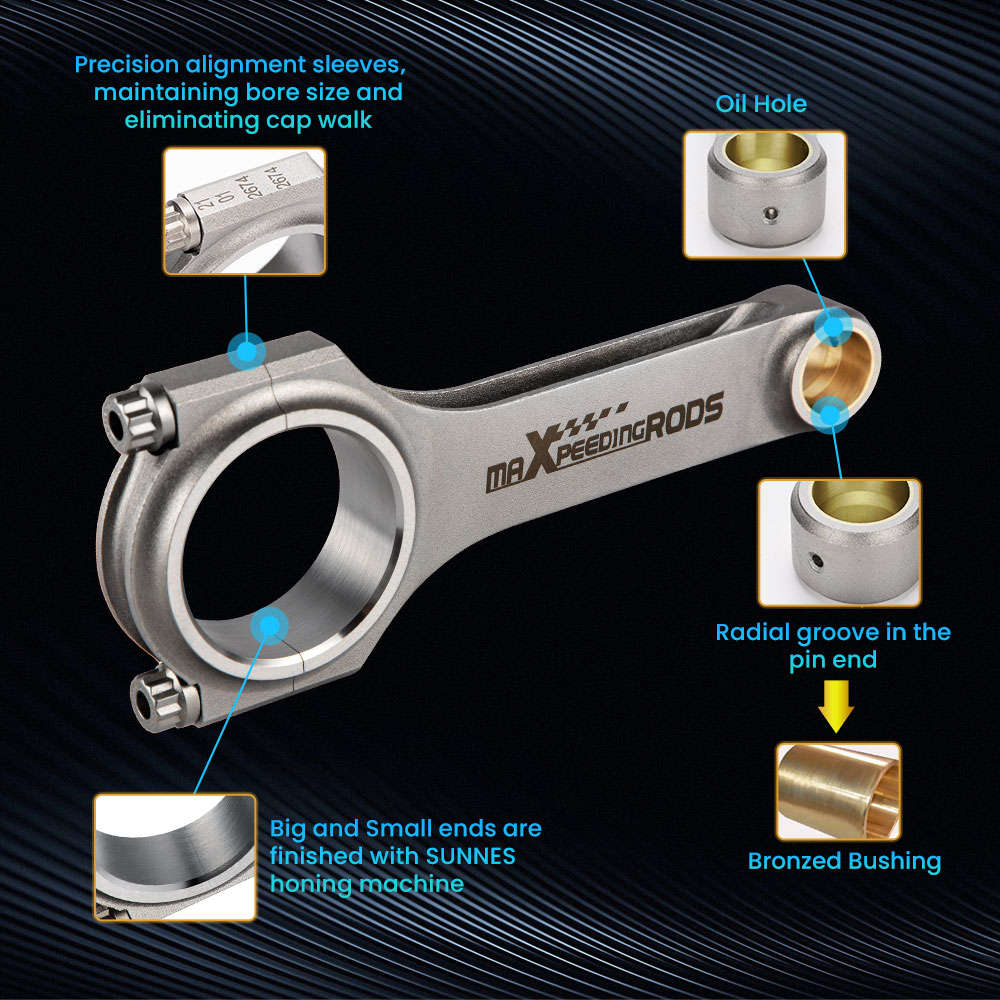

- All big and small ends are finished with SUNNEN honing machine
- Precision alignment sleeves positively locate the rod cap, maintaining big end bore size and eliminating cap walk
- 100% X-rayed, sonic tested and magnafluxed
- Multi-stage heat treated
- Shot peened to relieve stress
- Come with the bronzed bushing suitable for the floating piston pin

Note

Professional installation is highly recommended (No Instruction Included)
