Connecting Rod+ ARP Bolts compatible for Opel Omega CIH 2.4L 8V 134mm Conrods Pleuel Bielle
Connecting Rod+ ARP Bolts compatible for Opel Omega CIH 2.4L 8V 134mm Conrods Pleuel Bielle
- ✓ Priset inkluderar moms — inga extra avgifter vid leverans
- ✓ Snabb leverans från vårt eget lager
- ✓ 100 % nytt, eftermarknadsdel i OE-kvalitet
- ✓ 2 års garanti mot tillverkningsfel
Application
Compatible for Opel CIH C24NE (2.4)
Compatible for Opel Manta B 2.4L 8V
compatible for Opel Omega A 2.4i
compatible for Opel Omega A Caravan 2.4i
compatible for Opel Frontera A 2.4i
compatible for Opel Compatible for Vauxhall Carlton 2.4L CIH MK3
Specification

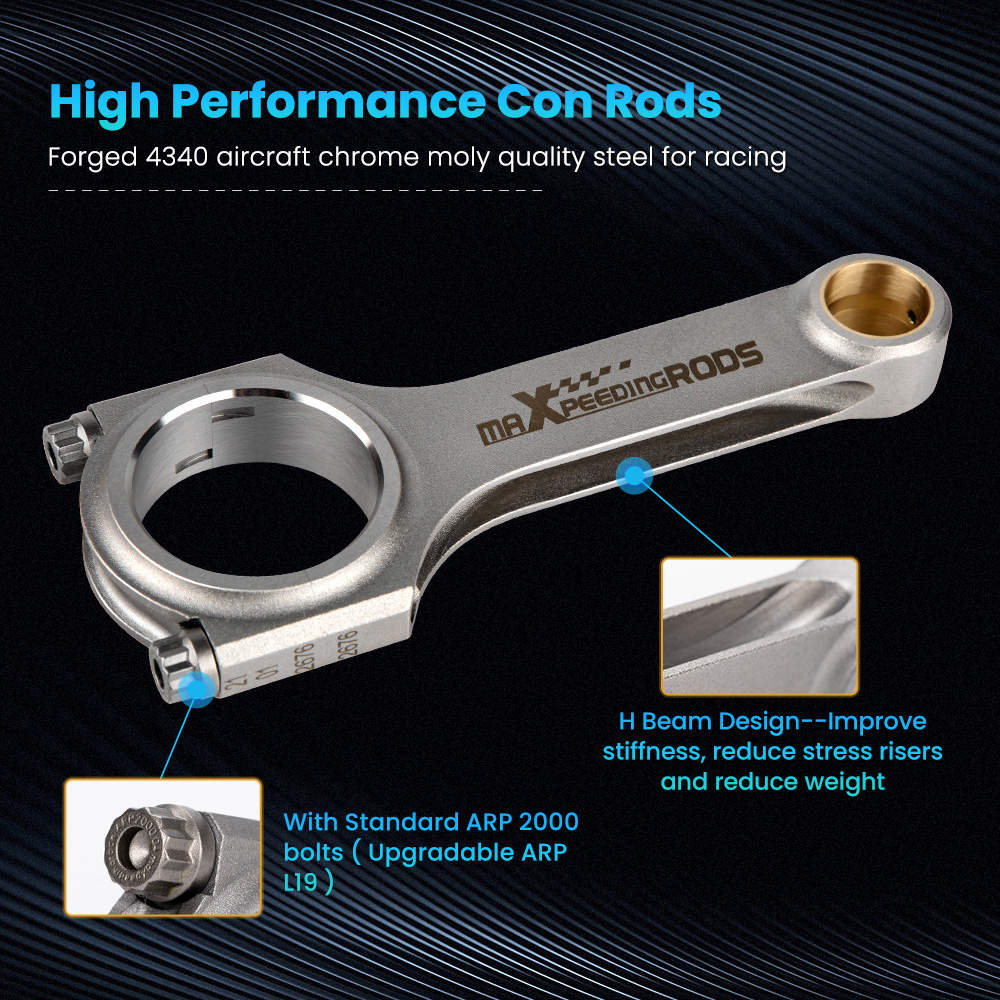

Beam Style: H-beam Street/Strip
Material: 4340 Chromoly Steel
Finish: Shot-peened
Wrist Pin Style: Floating
Clearanced for Stroker: Yes
Cap Retention Style: Through-bolt
Connecting Rod Bolt Brand: ARP
Connecting Rod Bolt Diameter: 3/8"
Connecting Rod Bolt Material: Alloy Steel
Fastener Yield Strength (psi): 220,000 psi (ARP 2000)
Upgrade Fasteners: ARP L19 (260,000 psi) optional
Connecting Rod Bolt Head Style: 12-point
CNC Machined: High Precision

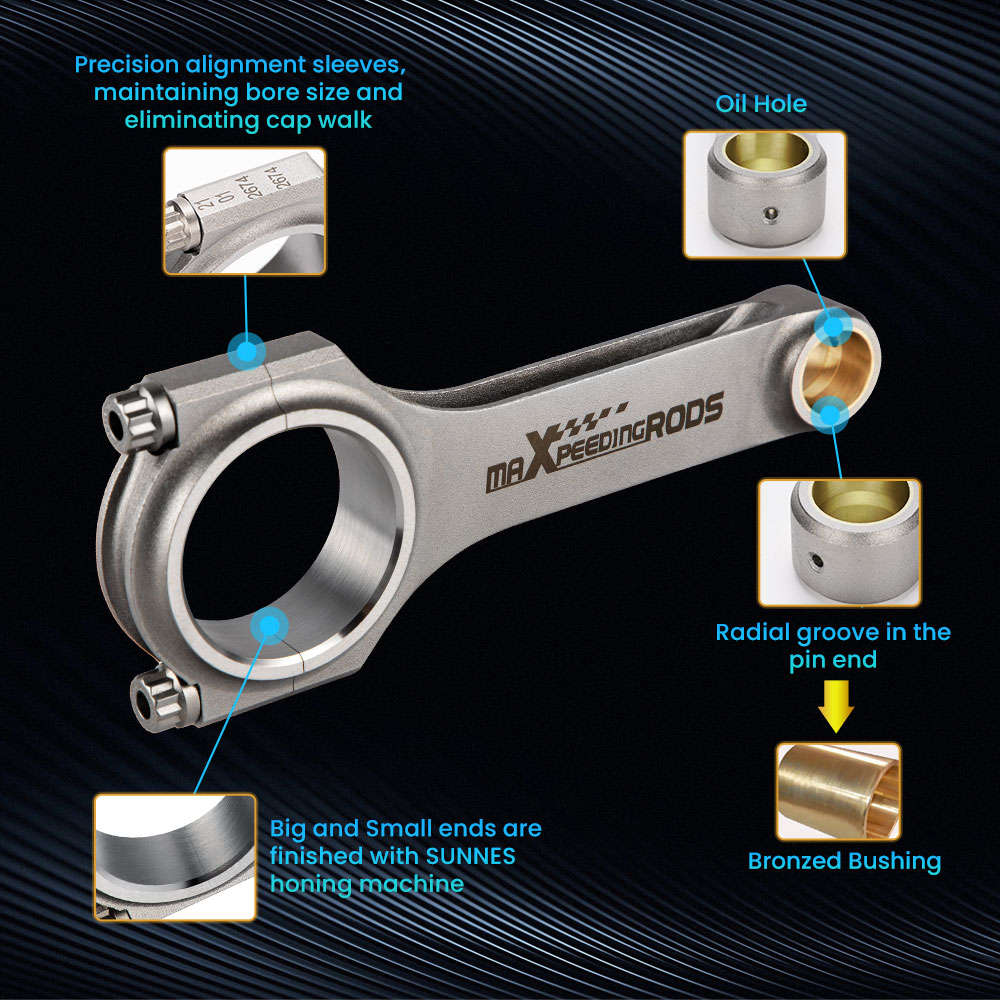

Rod Cap Alignment: Precision dowels
Bore Tolerance: ±0.005 mm
Balancing: ±1 gram per rod
Weight Matched Set: Yes
Remanufactured: No
Testing: Magnafluxed, X-rayed, Ultrasonically tested
Heat Treated: Yes
Dimension
Connecting Rod Length Center to Center: 134.00mm/5.276in
Approximate Connecting Rod Weight: 548g
Big End Bore Diameter: 55.00mm/2.165in
Pin End Bore Diameter: 22.00mm/0.866in
Big End Width: 24.80mm/0.976in
Small End Width: 24.80mm/0.976in
Performance Ratings

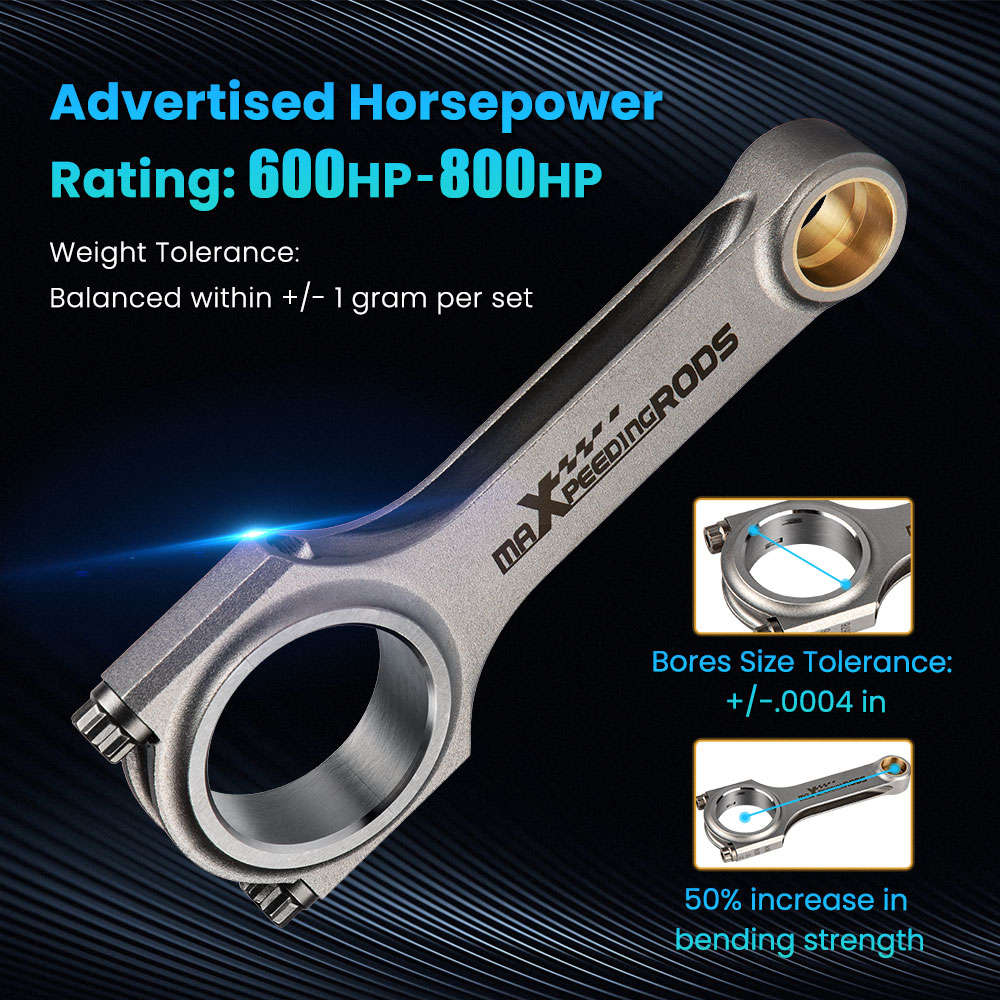

Advertised Horsepower Rating: 200HP/piece
Advertised RPM Rating: 9,000rpm
Packaging

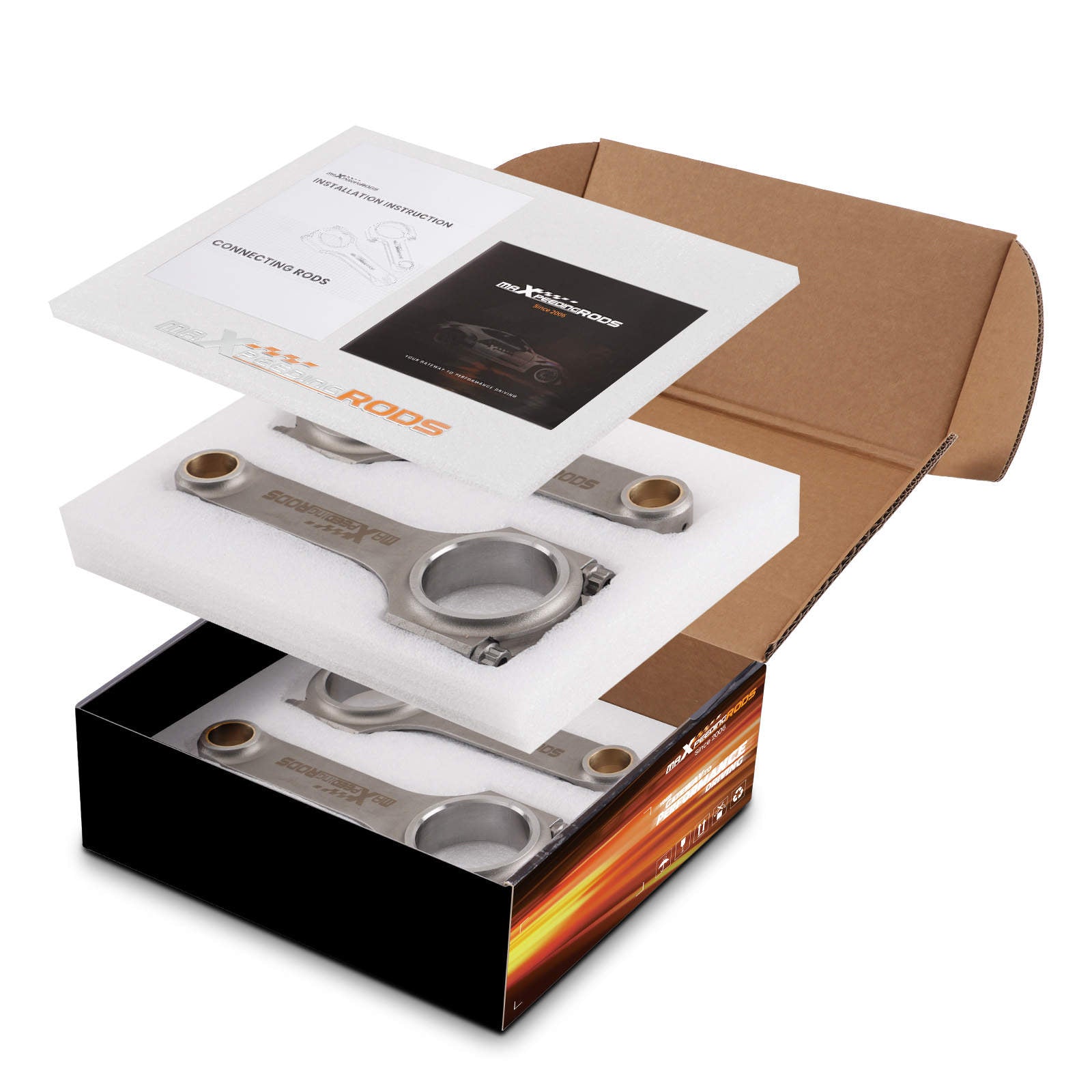

Quantity: Sold as a set of 4
Package Size: 28CM*20CM*10CM
