Introduction

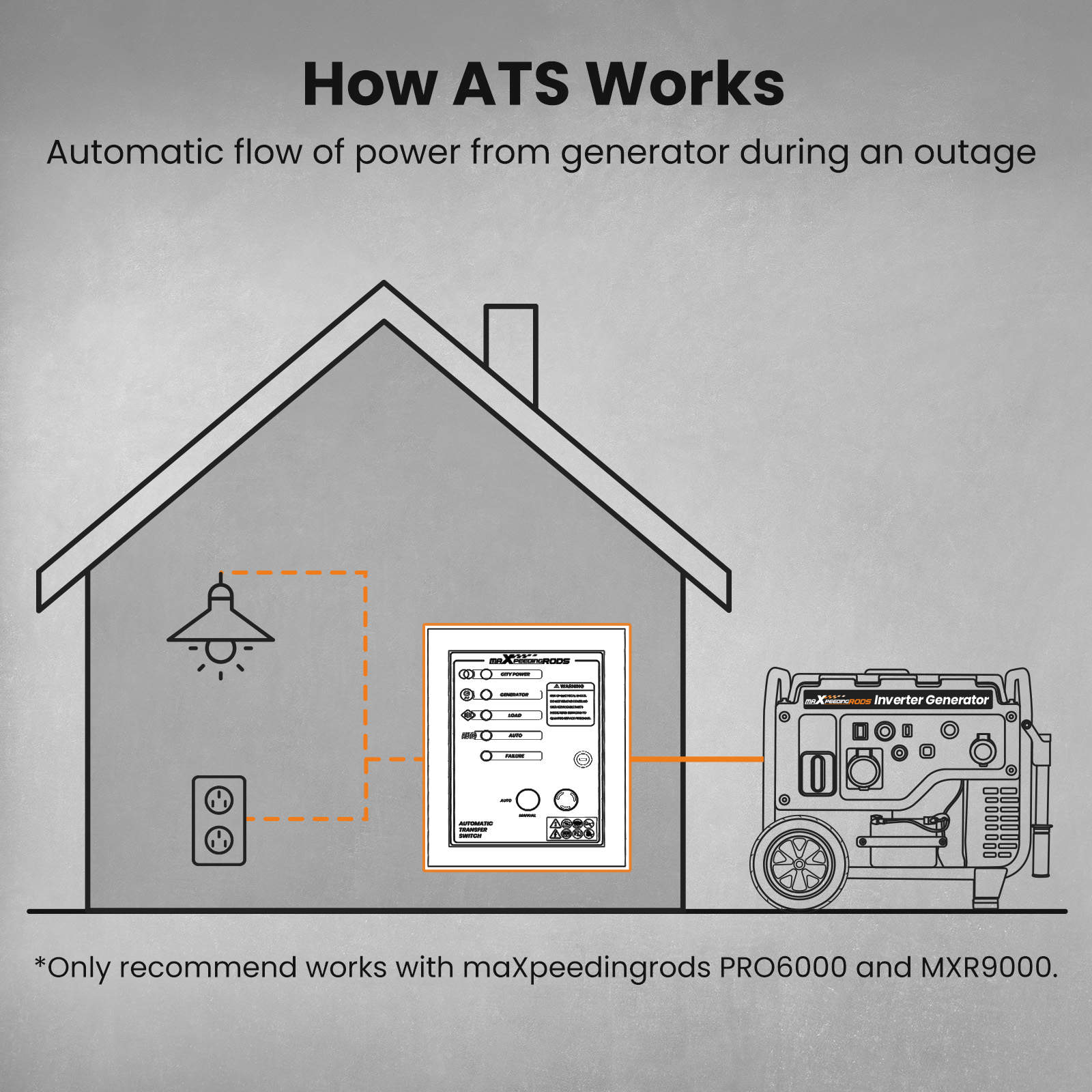

MaXpeedingrods ATS system is designed for mains power supply off and starts generator for emergency power supply on. When mains power supply off,the generator will start in 15-30 seconds,and then supply power to load.When mains power supply on,the ATS system will automatically transfer switch to main power supply,and then stop the generator in 30-60 seconds.

Application

1. The unit is mainly used in radar stations, outposts, barracks, post and telecommunications, finance, hospitals and after a power outage Users who need rapid power supply.
2. It is compatible with the MAXPEEDINGRODS MXR6000 PRO and MXR9000 inverter generator with integrated 7-pin ATS connector.

Specification

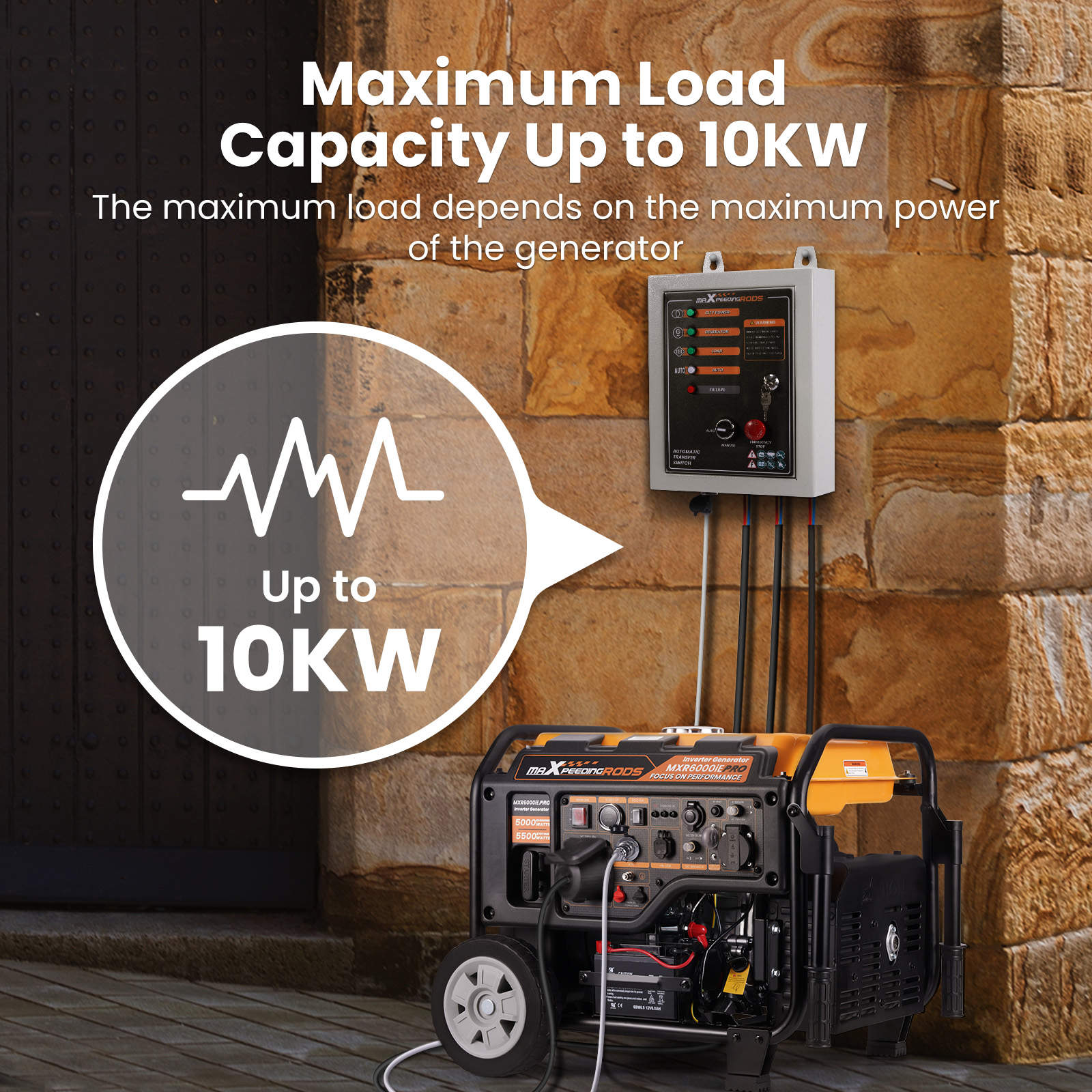

Contactor rated current:
Single Phase: 230V/25A (5KW Generator)
Single Phase: 230V/50A (10KW Generator)
Inner compatible for Charger:
Input Voltage: Compatible for AC 90~250V
Output Voltage：DC 13.8V（±2%）
Charging Current：2A
Operating temperature: (-25～80)℃, humidity: ≤ 60%
Storage conditions: (-15～60)℃ , humidity: ≤ 60%
Connection cable: 7 pin Chrome plated
Cable length ( m ) : 5m
Dimensions( cm): 32*25*14
Packing size( cm ): 41*33.5 * 22
Net weight ( kg ): 4.8kg
Gross weight ( kg ): 6.5kg

Package included

1 X ATS Unit
1 X 5m Connection Cable
1 X User Manual

Feature

1. It is compatible with maXpeedingrods PRO6000iE and MXR9000 inverter generators.
2. The ATS unit has a controller that allows the generator's automatic start in compatible for case of main power failure.

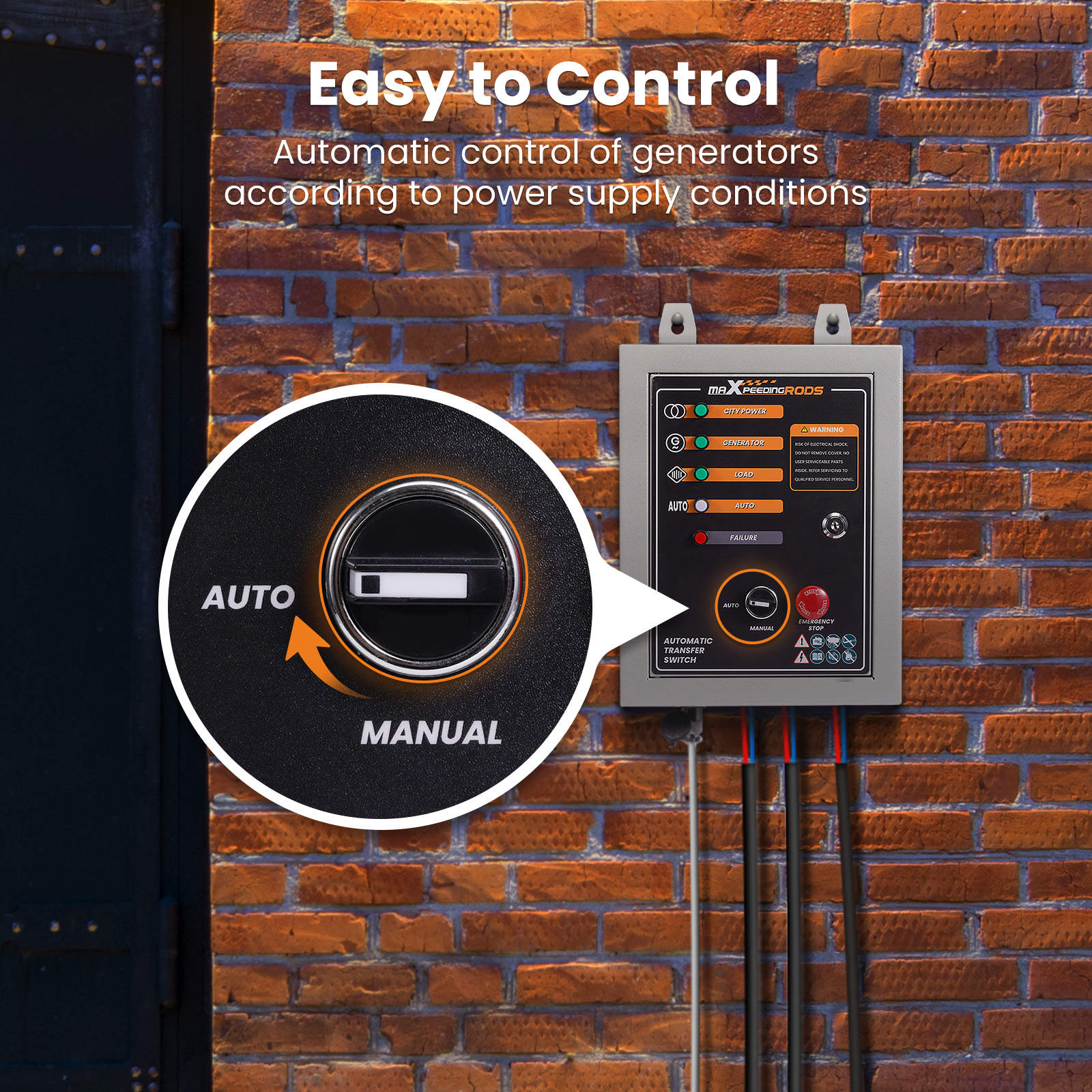

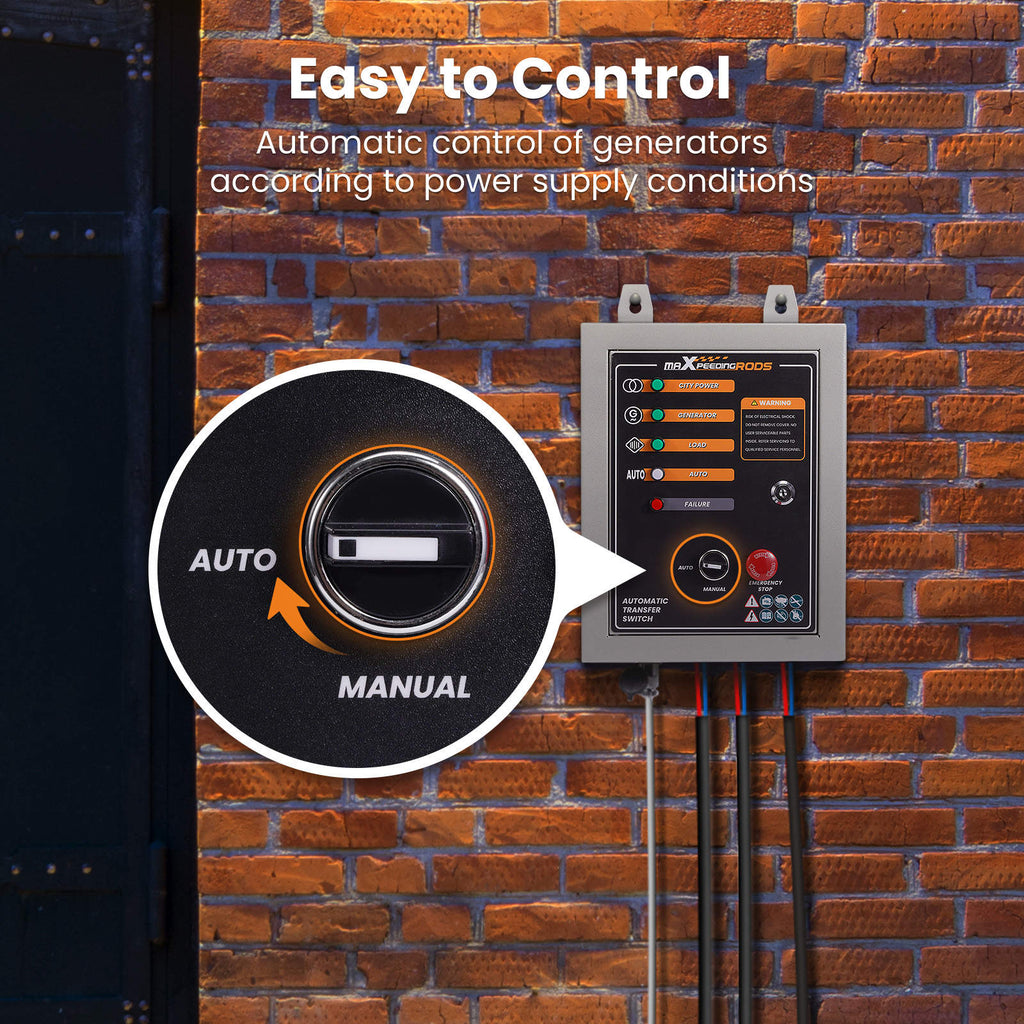

3. Automatic / manual operation.
4. 7-pin control cable connector.

Note

1. Do not use the product near flammable gases, liquids or dust. Keep the work area clean and well lit to avoid injuries.
2. The product is energized. Observe safety precautions to avoid electric shock. Avoid operating the product in high-humidity environments.
3. The total power of power consumers connected to the ATS system must not exceed the maximum permissible power for this ATS unit model.
4. Opening of ATS unit and its connection to the mains must be carried out only by qualified specialist. Keep unauthorized persons, children and animals away from the running product.
