Note

1. All modifications must be installed by licensed mechanics and in compliance with your local modification regulations.

2. Please ensure all components are tightened with correct torque specifications (which can be found in the vehicle service manual)before and after installation. Any loose nuts, bolts, or locks will cause noise. Do check and tighten before serious problems happen.

3. Impact wrench is prohibited during the installation, it will loosen or damage the product.

4. Examine the clearance between tires and suspension. ( The minimum clearance should be 4mm, otherwise, you need to add wheel spacers. Caution: It is not sufficient with torsion beam trailing arm axles)

5. Regular maintenance is recommended for the coil-over. Applying WD-40 or a suitable protective spray every 3–4 months can help keep the components clean and moving smoothly.

Introduction

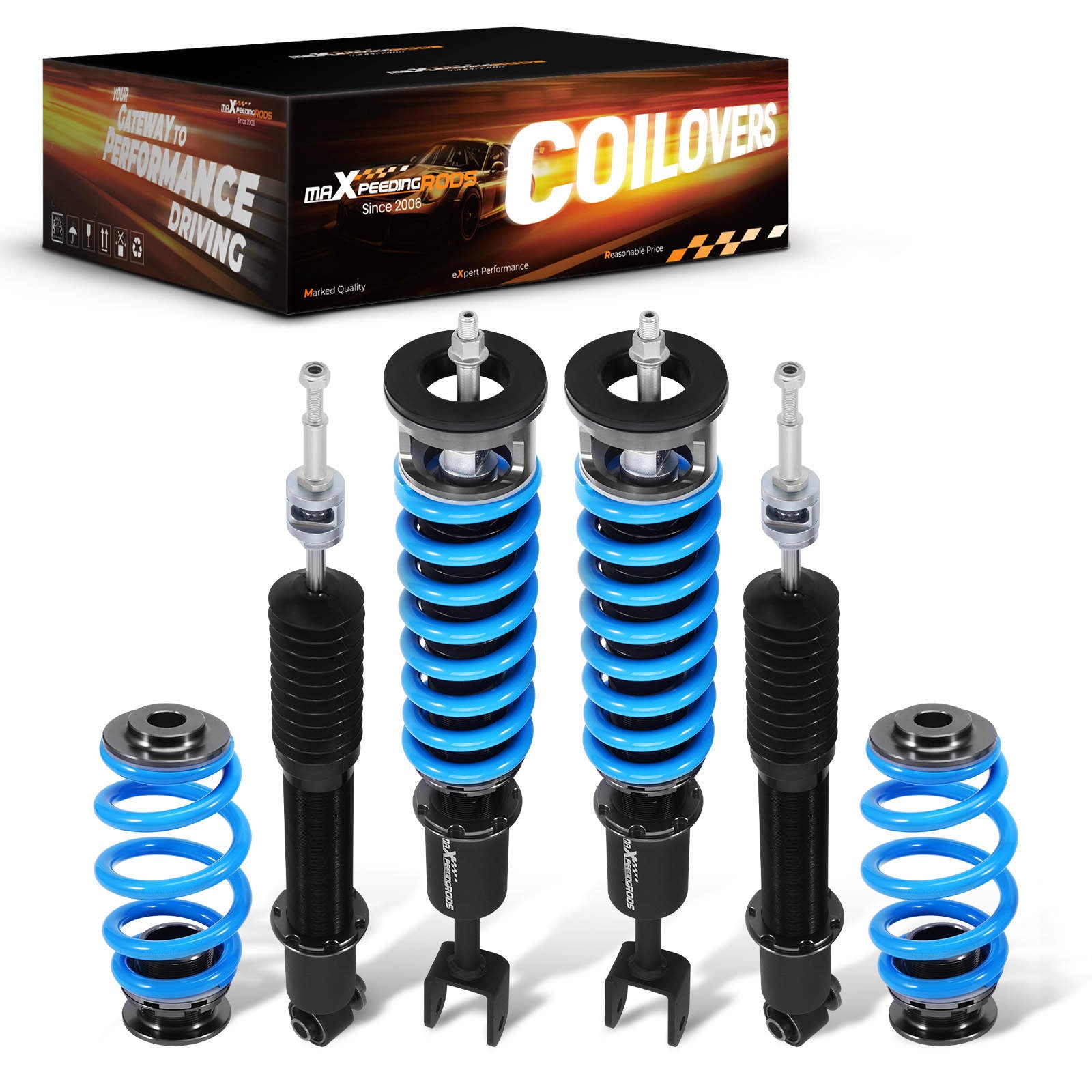

maXpeedingrods T6 lowering coil-over features adjustable rebound damping, independent height adjustment without changing spring preload, application-specific damping oil, and performance-oriented springs. Selected applications also feature adjustable camber plates. These features provide additional suspension adjustment options for ride height, damping, and alignment settings, while supporting a customized vehicle appearance. All coil-overs are assembled in a controlled production environment to help minimize exposure to dust and contaminants during assembly.

Application

Compatible for AUDI A6 (C6) Compatible for FWD 2005–2011
compatible for AUDI A6L (C6) Compatible for FWD 2009–2012
compatible for AUDI A6 Allroad Quattro (C6) AWD 2006–2011

Specification

Front top mount structure: OE top mpount required
Rear top mount structure: OE top mpount required
Damping adjustable: Available, 24 levels of rebound damping force
Camber adjustable:Not available
Height adjustable: Yes, lowering 25-75mm depending on the vehicle models
Spring rate Front: 12 kg/mm (672 lbs/in)
Spring rate Rear: 11 kg/mm (616 lbs/in)
Front spring inner diameter: 62 mm
Rear spring inner diameter: 62-110-62 mm
Spring length Front: 230 mm
Spring length Rear: 180 mm
Spring Preload advised: 7-10 mm
Color: Black body with blue spring

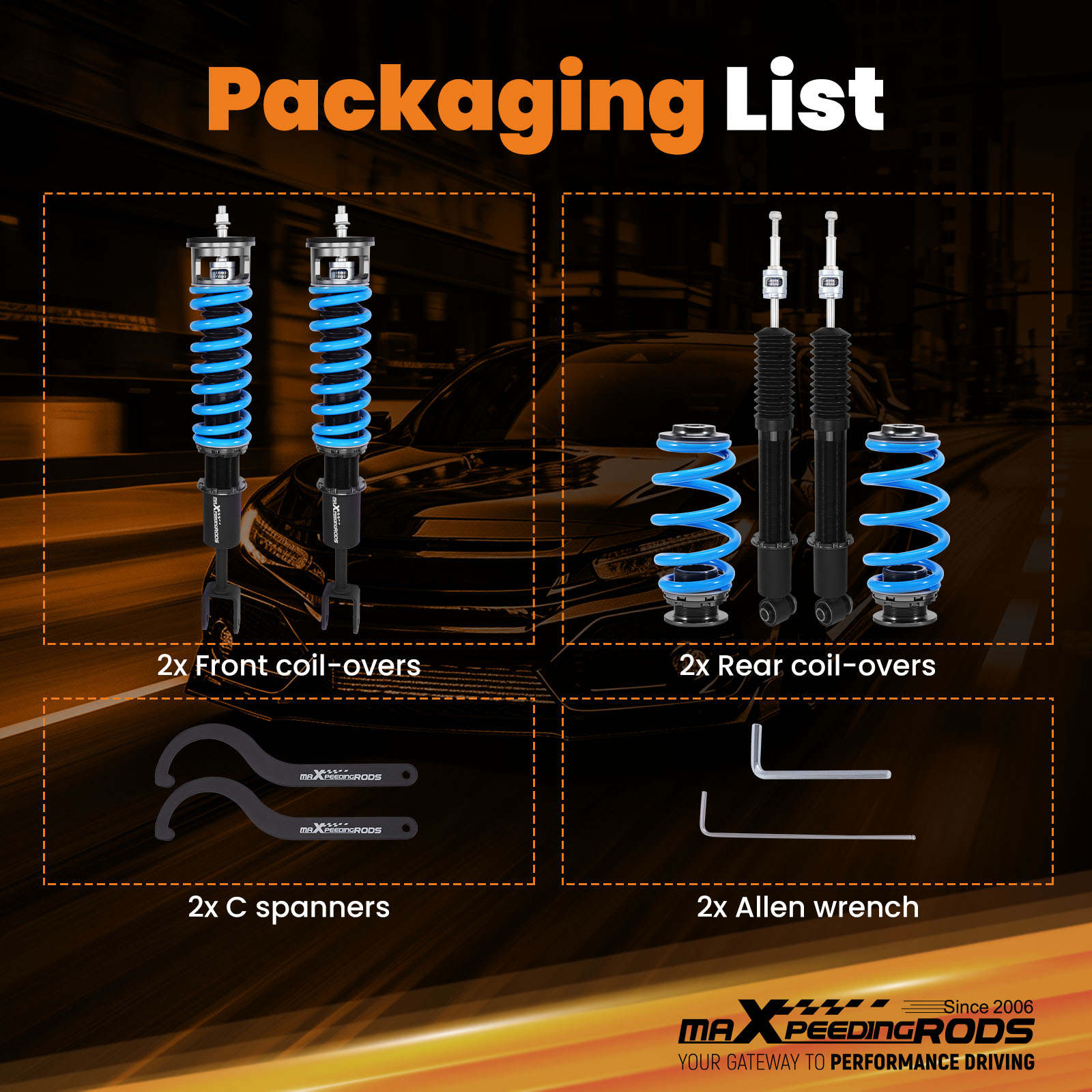

Package included

Package included：

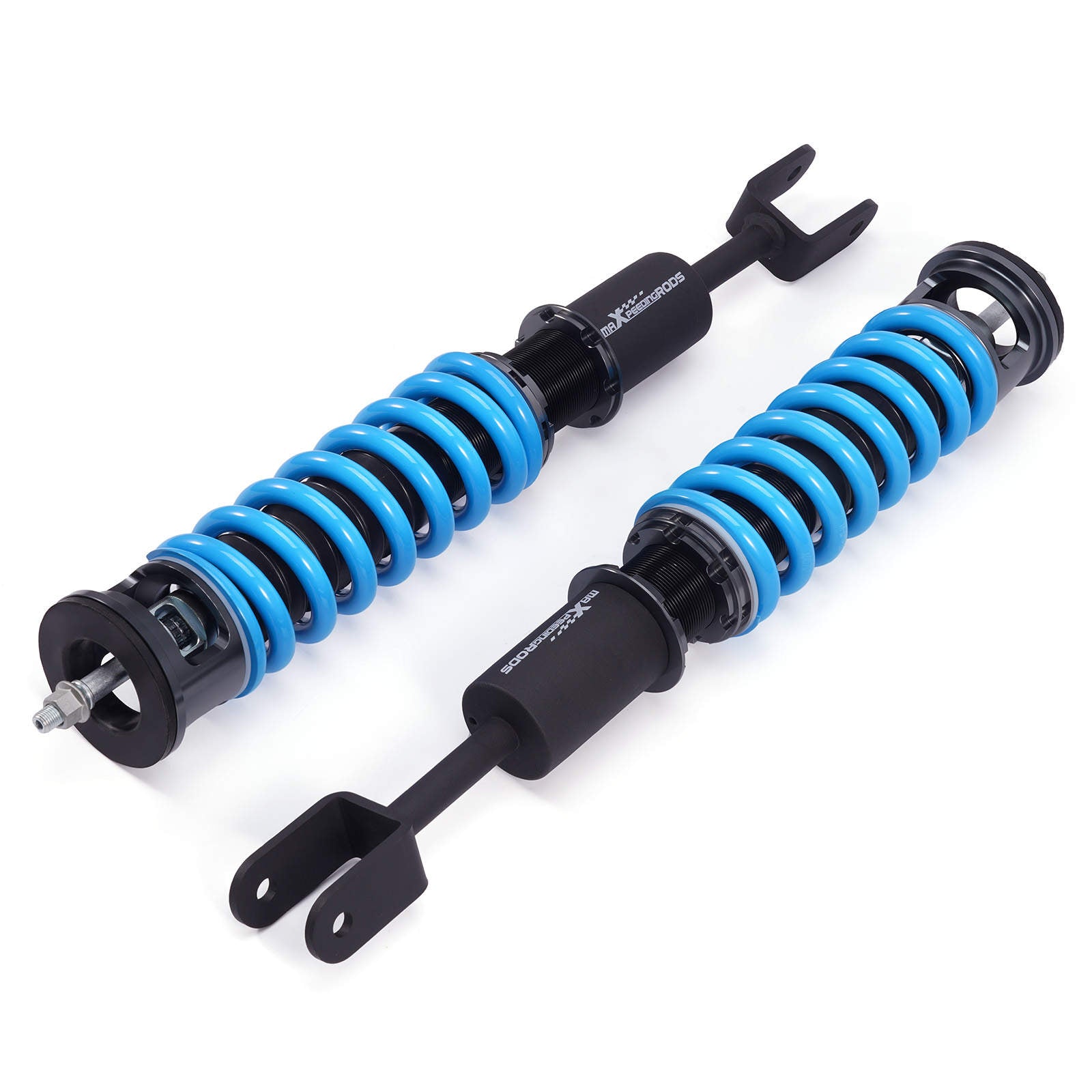

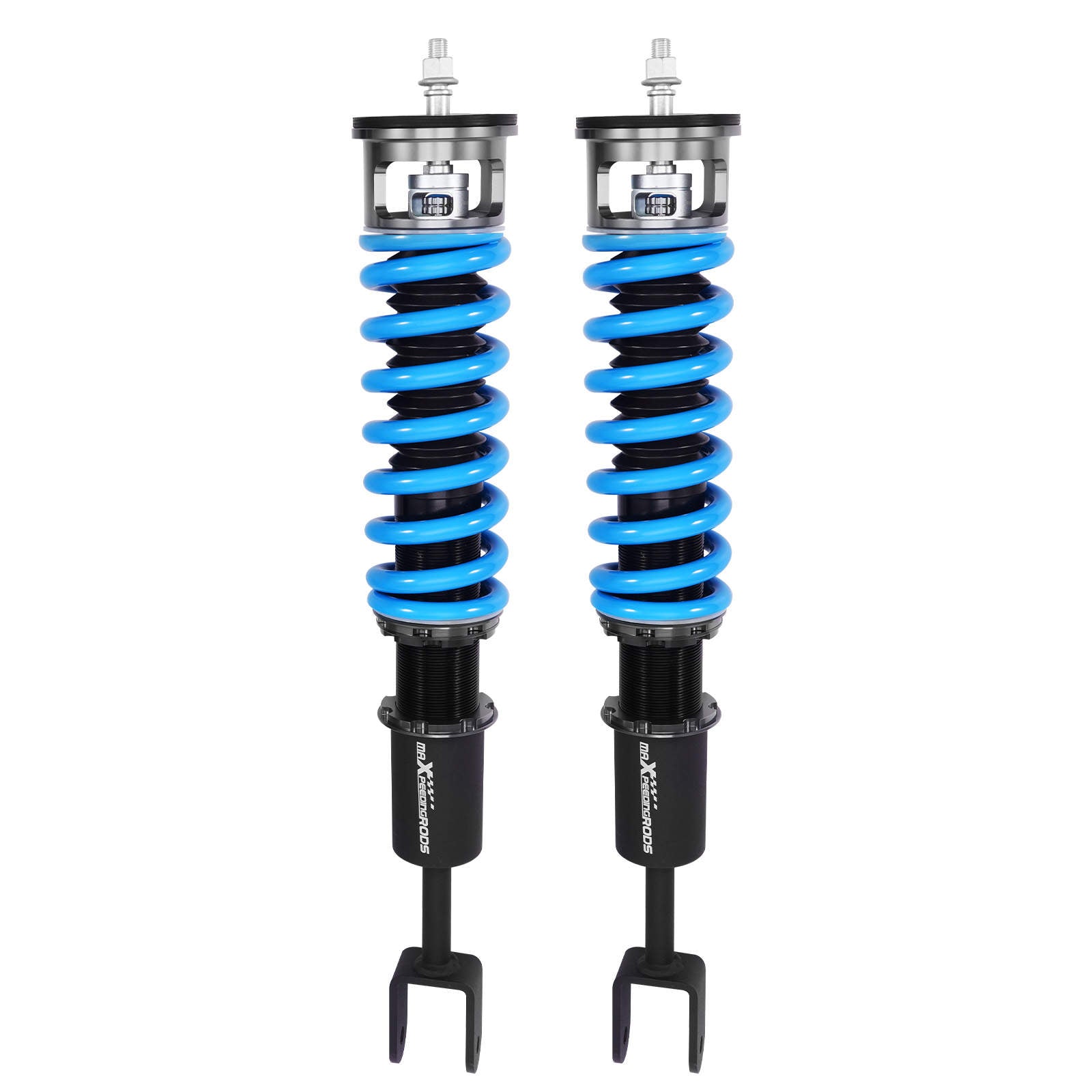

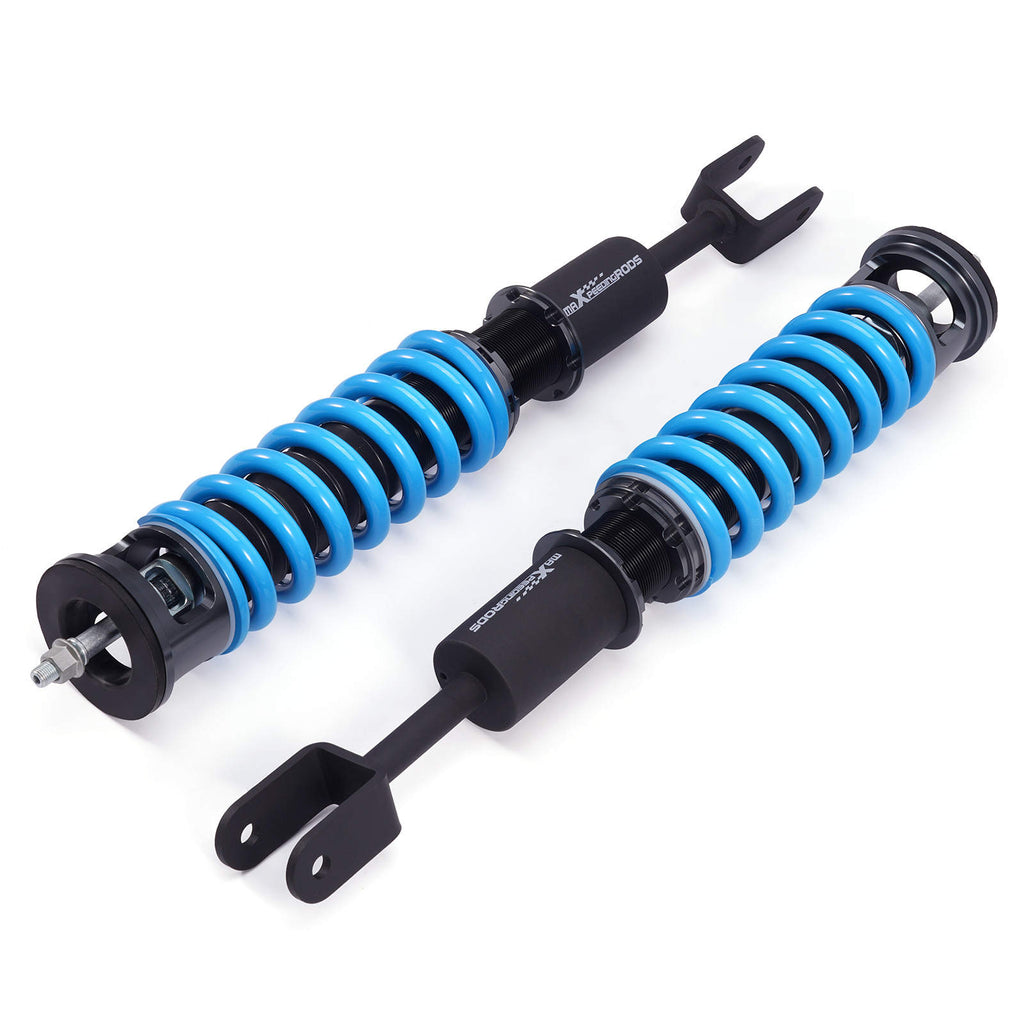

2x Front coil-overs

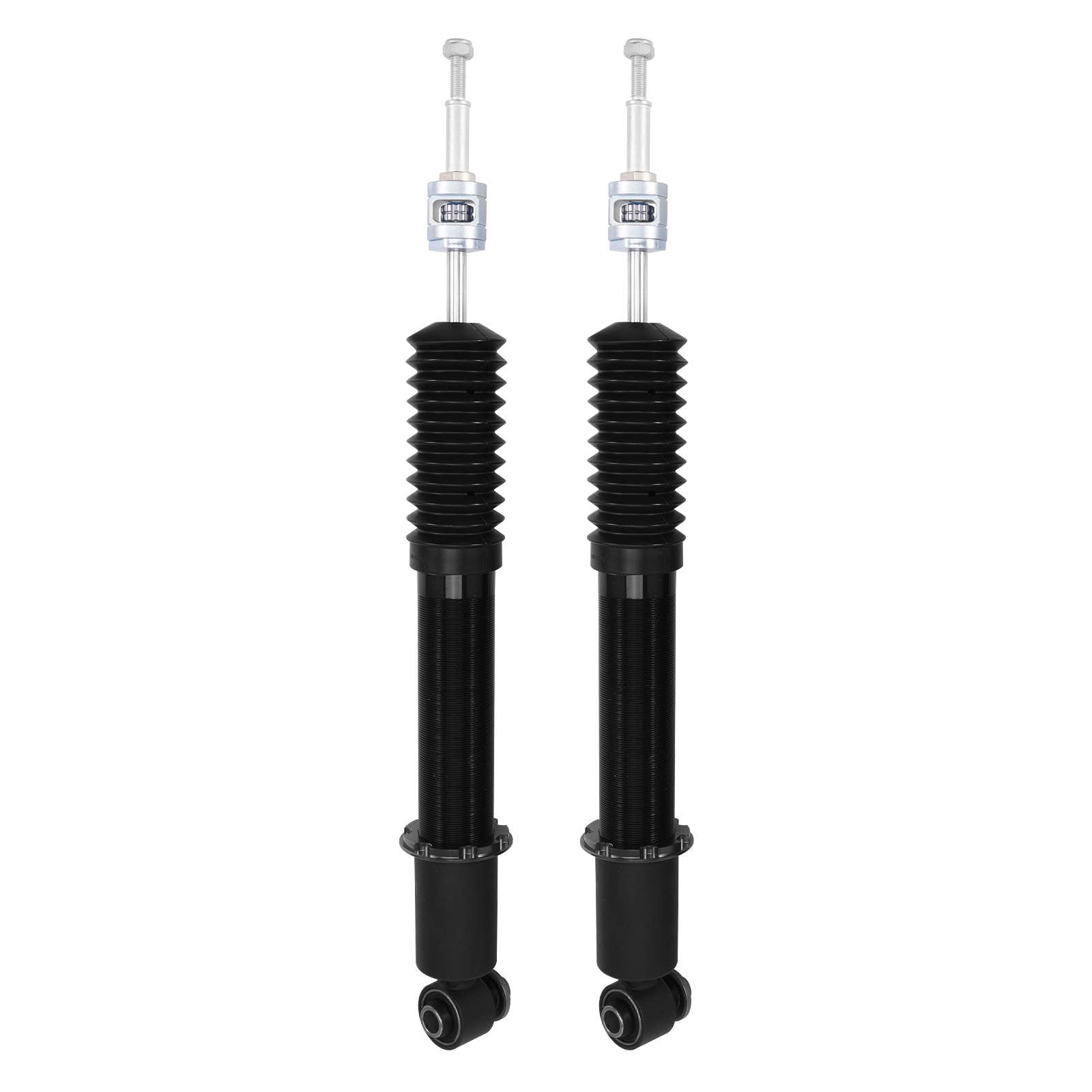

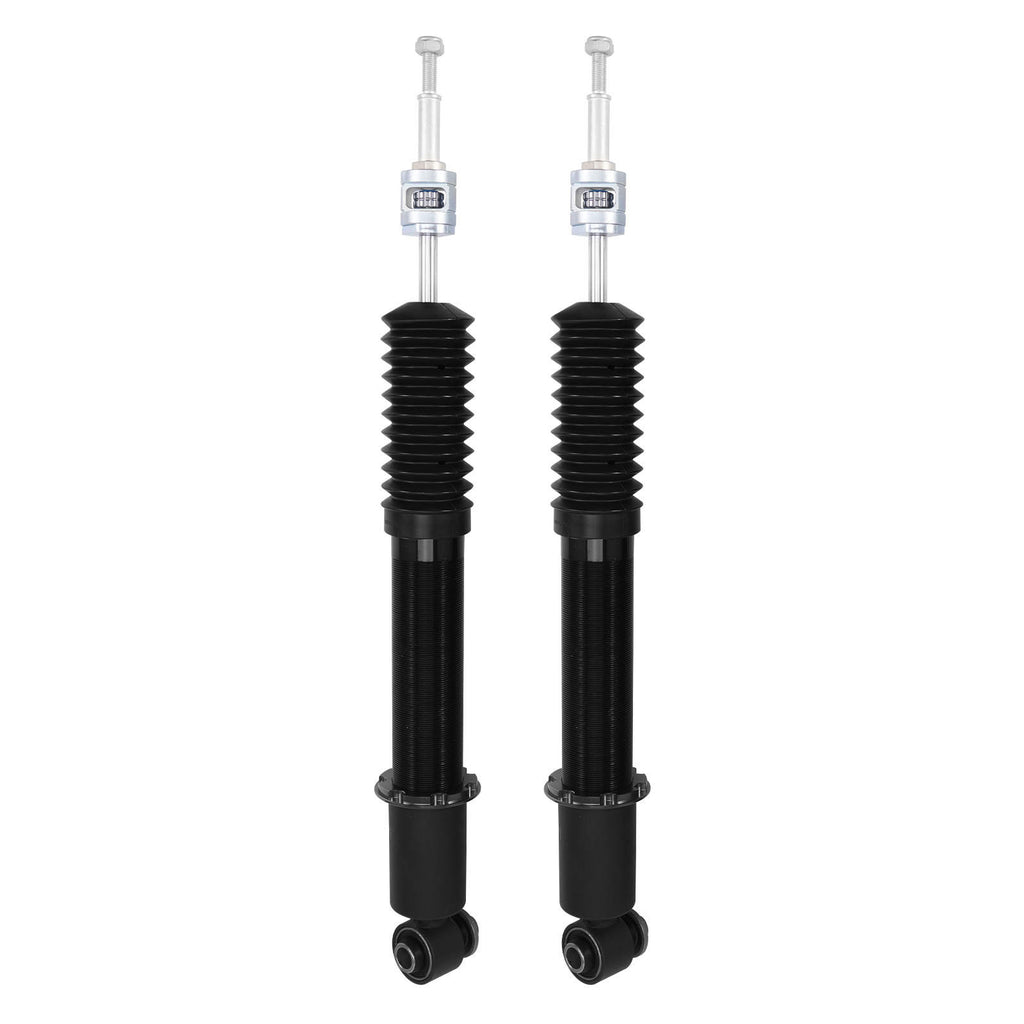

2x Rear coil-overs
2x Allen wrench
2x C spanners
1x Sticker

Feature

1. Lowered height adjustment from 25-75mm which allows a lower center of gravity and also adds a more aggressive stance

2. Adjustable pre-load spring tension to reduce the shaking motion to a certain extent

3. 24 levels adjustable damper -- This allows you the ability to perfectly dial in your coil-overs system. For nice comfortable driving, set damping to full soft. For more spirited driving, set it to 16 clicks. For occasional track days, set it to full stiff.

4. CNC machined Aluminum top mounts and lockers-- - excellent strength, and save weight

5. Heavy‑duty steel lower mounts designed for secure installation.

6. Upgraded spring --- more than 300,000 times continuously test to assure its high tensile strength.

7. All inserts come with pre-fitted long rubber boots for enhanced damper protection against dust, dirt, and debris.

8. With a better-damping setting, you will get better performance and comfort at the same time.

9. Twin-Tube structure ---provides excellent handling & control characteristics for most driving conditions

10. Anti-corrosion Finish - Anodized Aluminum And Powder Coated Carbon Steel Parts

11. Test for the best---Every part was tested on our professional machine before being assembled and tested by our professional racers on the road.

12. Components are assembled in a controlled clean‑room environment to minimise particulate contamination, with attention to assembly‑level.

13. Upgraded damper oil---make damping more stable and smooth in a wide temperature range.
